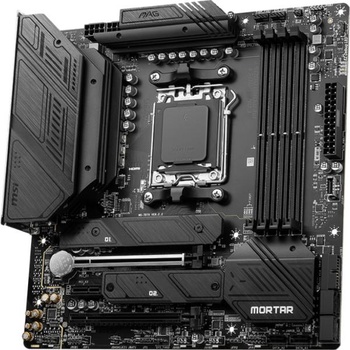

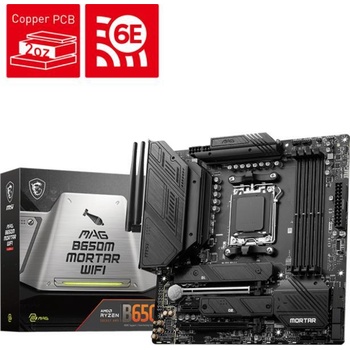

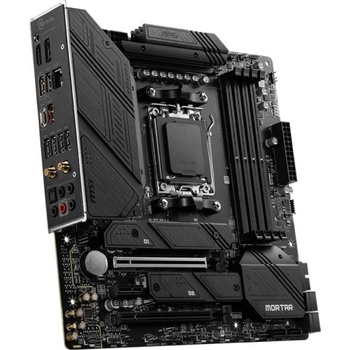

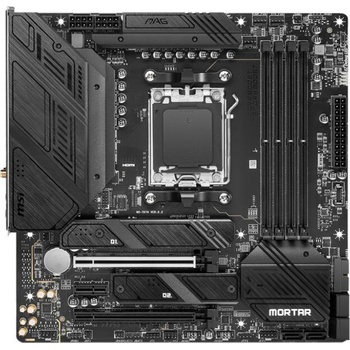

MSI B650M MAG MORTAR WIFI

DescriptionMAG B650M MORTAR WIFI

• Supports AMD Ryzen 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 6400+(OC) MHz
• Premium Thermal Solution: Extended Heatsink Design and M. 2 Shield Frozr are built for high performance system and non-stop works
• 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Lightning M. 2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
• Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

12+2+1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings. OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. Performance Switch combines the benefits of AMD default PBO(Precision Boost Overdrive) and MSIs own OC settings, provides higher CPU performance in both status of single-core and multi-core. This is for users who dare for the maximum performance. MSI PBO Thermal profiles are setting maximum CPU temperature at 85°C, 75°C and 65°C levels. With the thermal profiles, the CPU operates at lower voltage and temperature but remaining the same performance. Config TDP is designed to provide ECO Mode (65W) or different TDP (PPT/TDC/EDC) settings for advanced users. By offering several profiles for different TDP settings in Click BIOS 5, Config TDP makes setting TDP profiles easier and dont need to modify settings manually for each TDP. EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
Model:MAG B650M MORTAR WIFICPU socket:Socket AM5Processor family:AMD RyzenIntegrated CPU:NoChipset manufacturer:AMDChipset type:AMD B650Memory type:DDR5Number of DDR5 slots:4Memory bus frequency:5800 MHz
6000 MHz
5600 MHz
5400 MHz
4800 MHz
6400 MHz
6200 MHz
5000 MHz
5200 MHzMax memory size:128 GBExpansion slots:2 x PCIe 4.0 x 16
1 x PCIe 3.0 x 1Max. number of SATA devices:6RAID:YesDetailed data on disk/drive interfaces:2x M. 2 slot:

• M. 2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M. 2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

6x SATA 6G portGraphics:

• 1 x HDMI
• 1 x DisplayPort
• Support for HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
• Support for DP 1.4, maximum resolution of 8K 60Hz

Sound card:

• Realtek ALC4080 Codec
• 7.1-Channel High Performance Audio
• S/PDIF output
• Supports up to 32-bit/384kHz front panel playback

Network interface:1 x 10/100/1000/2500 Mbit/s
Wi-Fi 802.11a/b/g/n/ac/ax
BluetoothNetwork interface:

• Realtek RTL8125B 2.5Gbps LAN
• AMD Wi-Fi 6E 802.11 a/ b/ g/ n/ ac/ ax
• Wireless module is pre-installed in M. 2 slot (Key-E)
• MU-MIMO TX/RX
• 20MHz, 40MHz, 80MHz, 160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands

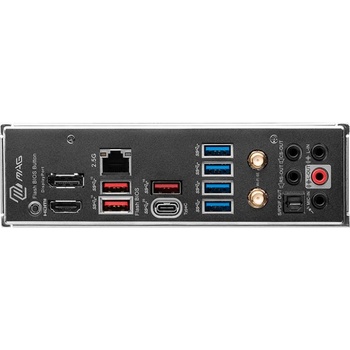

USB ports at back panel:8USB ports on motherboard:7Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports:6Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports:5FireWire (IEEE 1394):NoCOM connector / port:NoLPT connector / port:NoExternal connectors:1 x Flash BIOS Button
1 x USB 3.1 Type-C
2 x SMA
3 x USB 3.1
1 x Line In
1 x Line Out
1 x MIC
1 x RJ-45
1 x S/PDIF
4 x USB 3.0
1 x HDMI
1 x Central Speaker / Subwoofer
1 x Rear Speaker
1 x DisplayPortOnboard connectors:2 x Addressable LED
1 x TPM header
6 x SATA III 6Gb/s
4 x USB 2.0/1.1
2 x USB 3.0 header
1 x USB C
1 x 24pin ATX zasilanie
2 x M. 2
3 x 4pin Chassis fan
2 x 8pin 12V
2 x System panel header
1 x Front panel audio header
1 x Chassis intrusion header
1 x 4pin CPU fanForm factor:micro ATXDimensions:243.84 x 243.84 mmSupported operating systems:Windows 11
Windows 10
