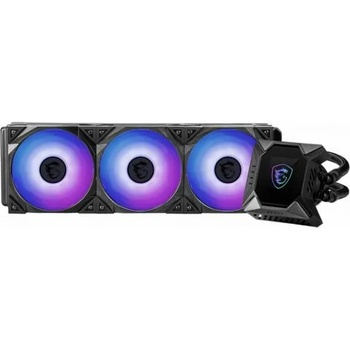

MSI MPG K360 V2

MSI MPG CORELIQUID K360 V2

NEXT-GEN AMD SOCKET AM5 SUPPORT

AMD Socket AM5 (LGA 1718) is the next-generation socket designed to support next-generation AMD Ryzen 7000 desktop processors (Zen 4). AMD Socket AM5 uses the same liquid cooler bracket as Socket AM4*. This allows you to upgrade to and enjoy AM5 without buying a new liquid cooler.

*Requires motherboard's dedicated AMD Socket AM5 backplate.

UNRIVALED RAPID COOLING

MSI's exclusive TORX FAN 4.0 provides concentrated airflow to the radiator for the most rapid heat dissipation.

TORX FAN 4.0

Inspired by teamwork, MSI’s exclusive TORX FAN 4.0 has two fan blades working as one with an outer ring design.



CONCENTRATED

COOLING PERFORMANCE

A 60mm TORX FAN 3.0 is placed within the water block to help dissipate heat for the M. 2 SSD, CPU VRMs, and surrounding components for improved performance.

2.4 CUSTOMIZABLE LCD DISPLAY

The MPG CORELIQUID K Series comes equipped with a 2.4 LCD capable of displaying a wide range of hardware system information and customizable graphics.



Radiator Size 360 mm

Radiator Dimensions (WxDxH) 394 x 120 x 27 mm / 15.5 x 4.7 x 1.06

inches

Radiator Material Aluminum

Water Cooling Tube Material Black Rubber + Mesh

Water Cooling Tube Length 400 mm / 15.75 inches

Number of Fans 3

Fan Dimensions (WxDxH) 120 x 120 x 25 mm / 4.7 x 4.7 x 0.98

inches

Fan Speed 0 ~ 2500 RPM

Fan Air Flow 77.4 CFM

Fan Noise Level 39.9 dBA

Fan Static Pressure 4.29 mm H2O

Fan Bearing Two Ball Bearing

Fan Life Expectancy 100,000 Hours

Fan Rated Current 0.28A (MAX)

Fan Power Consumption 3.36W (MAX)

PWM Mode Yes

Cable Length (PWM Cable) 350 mm / 13.78 inches

Fan Connector 4 pin PWM

Fan Lighting ARGB

RGB Connector 3 pin

Pump Life Expectancy 50,000 Hours

Pump Noise Level 20 dBA

Pump Rated Current 0.33A

Pump Power Consumption 4W

Pump Speed 2800 +/-300 RPM (PWM controlled)

Pump Connector 4 pin PWM

Cold Plate Material Copper

Block Dimensions (WxDxH) 94.66 x 83.36 x 94 mm

Intel Socket Support

LGA 1700 / 1200 / 1151 / 1150 / 1155 /1156

LGA 2066 / 2011-3 / 2011

AMD Socket Support

AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ /

FM2 / FM1

Socket TR4 / sTRX4 / SP3

Panel Size 2.4"

Panel Type LCD

Panel Resolution 320 x 240

Panel Color Depth 16 bits

Panel Brightness 500 nits

Interface Connector USB 2.0 pin header

Power Connector SATA
