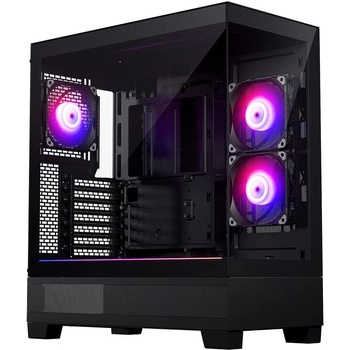

Phanteks XT View   With new hardware releases demanding more cooling capacity and internal space, the XT-series is designed to deliver just that. And it delivers extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 9x 120 mm fan locations, support for 140 mm fans, and dedicated radiator space in the top of the chassis. The XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the mid-plate that provide direct cooling.   Computing with a View Near-seamless glass panels. Plenty of space for the most powerful graphics cards. Mesh all-around for high performance cooling.     Cool and Powerful Dedicated top 360 radiator space in the top. Triple 120mm positions on the midplate for direct GPU cooling. Supports a total of 9x 120mm fan locations.      Build for the Future UNLOCK THE ZERO-CABLE SETUP
Mainboards with hidden connectors on the rear-side are fully supported by the XT Pro chassis. Support for MSI Project Zero mainboards. Support for ASUS BTF mainboards. Support for Gigabyte Project Stealth mainboards.      Specifications General   Case Dimensions (L × W × H): 440 × 230 × 500 mm (17.7 × 9.05 × 19.68 in) Form Factor: Mid-Tower Mainboard Support: E-ATX*; ATX; Micro-ATX; Mini-ITX Up to 280 mm wide Rear ATX Mainboard Support: MSI Project Zero; ASUS BTF; Gigabyte Project Stealth Materials: Steel Chassis; Tempered Glass; ABS Plastic Side Window: Yes PCI Slots: 7 Vertical GPU Support: 3-Slot Riser Cable: Sold separately Internal 2.5" Bay: 5 + 1 × 3.5" HDD Internal 3.5" Bay: 2 + 3 × 2.5" SSD Front I/O: 1 × USB-C 3.2 Gen2; 1 × USB 3.0; Microphone / Headphone Combo; Power Button; Reset Button; D-RGB Mode Button; D-RGB Color Button   Fans   Total Fans: 120 mm: 9 ×; 140 mm: 3 × Top: 120 mm: 3 ×; 140 mm: 2 × Front: None Side: 120 mm: 2 ×; 140 mm: None Rear: 120 mm: 1 ×; 140 mm: 1 × Midplate: 120 mm: 3 ×; 140 mm: None   Radiators   Top: Max. 360 mm Front: None Side: Max. 240 mm* Only with vertical GPU bracket Rear: 120 mm Midplate: None   Clearance   CPU Cooler Height: 184 mm (7.24 in) GPU Length: 415 mm (16.33 in) GPU Width: 184 mm (7.24 in) Power Supply Length: 270 mm (10.62 in) Top Radiator (L × W × H): 415 × 138 × 60 mm (16.33 × 5.43 × 2.36 in) Front Radiator (L × W): None Side Radiator (L × W): 305 × 120 × 62 mm (12.00 × 4.72 × 2.44 in)* Only with vertical GPU bracket Midplate Radiator (L × W): None

Продукт известен още и като XT View TG D RGB PH XT 523 V 1 DBK 01, XTViewTGDRGBPHXT523V1DBK01, XT View TG D RGB (PH XT523V1_DBK01), XTViewTGD-RGBPH-XT523V1DBK01, XT View TG D-RGB (PH-XT523V1_DBK 01)
