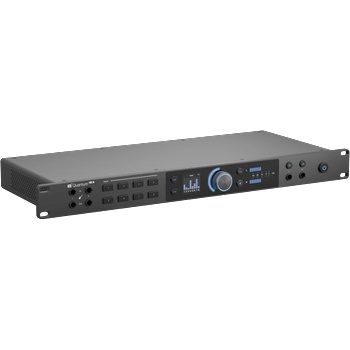

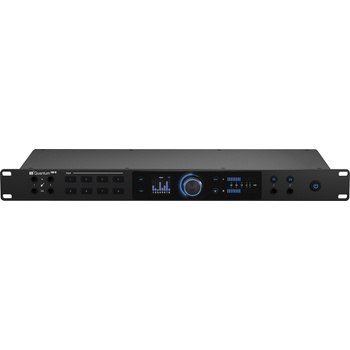

PreSonus Quantum HD8

Electronics HEADPHONE JACK Two - 1/4" TRS Female Stereo CONNECTIVITY USB-C® VOLTAGE 220-240V UK PHANTOM POWER +48 VDC Performance DIGITAL AUDIO BIT DEPTH 32-bit DIGITAL AUDIO DYNAMIC RANGE 124 dB Inputs INSTRUMENT INPUTS DYNAMIC RANGE 111 dB (A-Weighted, Minimum Gain) INSTRUMENT INPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) INSTRUMENT INPUTS GAIN RANGE 75 dB INSTRUMENT INPUTS MAXIMUM LEVEL +21 dBu (Unbalanced, Minimum Gain) LINE INPUTS DYNAMIC RANGE 118 dB (A-Weighted, Minimum Gain) LINE INPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) LINE INPUTS GAIN RANGE +/- 10 dB LINE INPUTS IMPEDANCE 10K Ohms LINE INPUTS MAXIMUM LEVEL +18 dBu (Balanced, Minimum Gain) LINE INPUTS TOTAL HARMONIC DISTORTION 0.001% (1 kHz, Minimum Gain) MICROPHONE INPUT CONNECTION TYPE XLR Female (Combo), Balanced MICROPHONE PREAMP DYNAMIC RANGE 116 dB (A-Weighted, Minimum Gain) MICROPHONE PREAMP EQUIVALENT INPUT NOISE -130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted) MICROPHONE PREAMP FREQUENCY RESPONSE 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) MICROPHONE PREAMP GAIN CONTROL RANGE 75 dB MICROPHONE PREAMP INPUT IMPEDANCE 1600 Ohms MICROPHONE PREAMP MAXIMUM INPUT LEVEL +18 dBu (Balanced, Minimum Gain) MICROPHONE PREAMP TOTAL HARMONIC DISTORTION 0.002% (1 kHz, Minimum Gain) Outputs HEADPHONE OUTPUTS DYNAMIC RANGE 118 dB (A-Weighted) HEADPHONE OUTPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz) HEADPHONE OUTPUTS IMPEDANCE WORKING RANGE 33 Ohms HEADPHONE OUTPUTS MAXIMUM OUTPUT 11 dBu (50 Ohms) HEADPHONE OUTPUTS TOTAL HARMONIC DISTORTION 0.001% (1 kHz) LINE OUTPUTS CONNECTION TYPE 1/4" TRS Female MAIN AND LINE OUTPUTS DYNAMIC RANGE 123 dB (A-Weighted) MAIN AND LINE OUTPUTS FREQUENCY RESPONSE 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz) MAIN AND LINE OUTPUTS MAXIMUM LEVEL +18 dBu (Balanced) MAIN AND LINE OUTPUTS OUTPUT IMPEDANCE 51 Ohms MAIN AND LINE OUTPUTS TOTAL HARMONIC DISTORTION 0.001% (1 kHz, +4 dBu) MAIN OUTPUTS CONNECTION TYPE 1/4" TRS Female Hardware MIDI IO 5-Pin Female DIN WORD CLOCK IO BNC Connector, 4.5 Vpp @ 75 Load Measurements DIMENSIONS 1.73x19.02x8.62 IN SHIPPING WEIGHT 6.45 LB PRODUCT DEPTH 8.6" (218 mm) PRODUCT HEIGHT 1.7 (43.1mm) PRODUCT WIDTH 19" (483mm) SHIPPING LENGTH 8.62 IN SHIPPING HEIGHT 1.73 IN SHIPPING WIDTH 19.02 IN Accessories INCLUDED ACCESSORIES DB-9 breakout cable, 1.5M USB-C to USB-C cable Miscellaneous COMMODITY CODE 8517620000 POWER CABLE IEC SUPPORTED SAMPLE RATES 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
