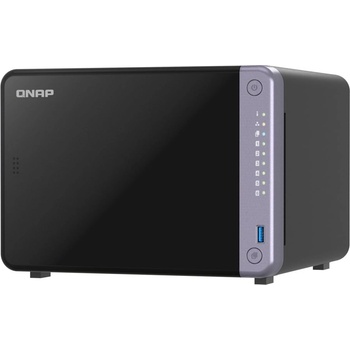

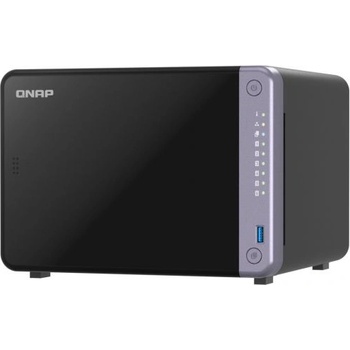

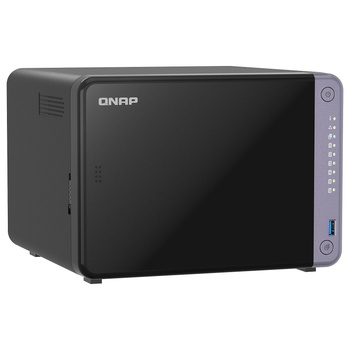

QNAP TS-632X-4G

TS-632X

Cost-effective 6-bay 10GbE NAS, designed to accelerate your workloads

Unlock the potential of 6-bay storage capacity and harness the speed of 10GbE with the TS-632X! This versatile storage solution offers secure backup, rapid transmission, support for container applications, and much more. Cost-effective yet powerful, the TS-632X streamlines workflow efficiency without exceeding your budget.

• Quad-core for multitasking

  Quad-core 2.0GHz processor and 4 GB non-ECC RAM (expandable to 16 GB, supports ECC RAM)

• Dual-port 10GbE SFP+

  High-speed 10GbE connectivity enhances transfer speed for intensive data transmission and shortens backup time.

• 2.5GbE is a must!

  Leverage SMB Multichannel or Port Trunking with built-in dual 2.5GbE ports to increase bandwidth and access speed.

• PCIe Gen 3 expandability

  Install a PCIe expansion card to add 2.5/5/10GbE connectivity or M. 2 SSD slots to the NAS for more I/O potential.

• Faster USB transfer and backup

  Two USB 3.2 Gen 1 (5Gbps) ports with One Touch Copy support allow faster backup to/from USB devices.

• Centralized backup and snapshot protection

  Easily back up different types of data and endpoints and create snapshots regularly to prevent ransomware threats.





Category SpecificationCP U AnnapurnaLabs (Amazon) Alpine AL524, 4-core, 2.0 GHzCPU Architecture 64-bit ARMFloating Point Unit —Encryption Engine —System Memory 4 GB DDR4 SODIMMMaximum Memory 16 GB (1 × 16 GB)Memory Slot 1 × DDR4 SODIMM, ECC supportedFlash Memory 512 MB (Dual boot OS protection)Drive Bays 6 × 3.5-inch SATA (6 Gb/s, 3 Gb/s)Drive Compatibility 3.5″ SATA HDDs; 2.5″ SATA HDDs; 2.5″ SATA SSDsHot-swappable Drives —SSD Cache Acceleration Support —2.5 Gigabit Ethernet Ports 2 × 2.5G/1G/100M10 Gigabit Ethernet Ports 2 × 10GbE SFP+Wake on LAN (WOL) —Jumbo Frame —PCIe Slot 1 × PCIe Gen 3 x4 (Card size: 190 × 68.9 × 18.76 mm / 7.48 × 2.71 × 0.74 in)USB Ports 2 × USB 3.2 Gen 1Form Factor TowerLED Indicators Power, Status, LAN, USB, HDD1–6Buttons Power, Reset, USB Auto CopyDimensions (H × W × D) 226.5 × 235 × 165 mmWeight (Net) 2.5 kgWeight (Gross) 4.96 kgOperating Temperature 0–40 °C (32–104 °F)Storage Temperature −20–70 °C (−4–158 °F)Relative Humidity 5–95% RH (non-condensing), wet bulb: 27 °C (80.6 °F)Power Supply Unit 120 W adapter (12 VDC), 100–240 VACFan 2 × 90 mm, 12 VDCSystem Warning Buzzer
