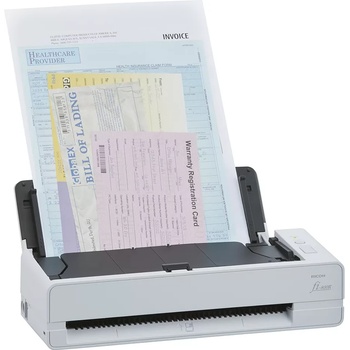

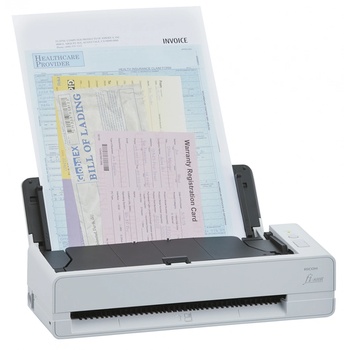

Ricoh FI-800R

Ricoh Fi-800R



With its ultra-compact footprint and versatility, this award-winning* scanner saves valuable desktop space and makes it easy to scan a variety of documents, including envelopes, passports, and IDs, all without a carrier sheet.



Dedicated Front Feeder

Flexible return-path scanning for thick documents, including envelopes, IDs, booklets, and passports.



Compact Footprint

Smallest scanner in its class with unique space-saving design.



Automatic Stacking Technology

Stacks documents in the automatic document feeder (ADF) after scanning so they're easy to retrieve.



Automatic Skew Correction and Active Separation

Captures the details on each page and minimizes paper jams.

Details

• Double-sided scanning speeds up to 40 pages per minute and 20-page automatic document feeder (ADF)
• Front feeder scans documents up to 5 mm thick in 3.5 seconds per page
• Compatible with Chromebooks and ChromeOS
• Ultra-compact size: 11.6" x 4.1" x 3.2"
• Integrated TWAIN and ISIS driver connectivity for compatibility with hundreds of scanning software solutions
• Federal Government Compliant: TAA Available and EPEAT Silver rated



Ultra-Compact, Versatile Scanner

Even on the most crowded desktops, there's room for the highly efficient fi-800R to get the job done. It provides an agile scanning experience for all kinds of documents, from letter-sized paper to passports to IDs.





SpecificationsScanner Type ADF (Automatic Document Feeder) / Manual Feed, DuplexScanning Speed*1 (A4 Portrait)
(Color*2/Grayscale*2/Monochrome*3) ADF Simplex: 40 ppm (200/300 dpi)
Duplex: 80 ipm (200/300 dpi)Manual Feed 3.5 seconds (200/300 dpi)Image Sensor Type CIS x 2 (front x 1, back x 1)Light Source RGB LED (front x 1, back x 1)Optical Resolution 600 dpiOutput Resolution*4
(Color / Grayscale / Monochrome) 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bitBackground Colors WhiteDocument Size Maximum 215.9 x 355.6 mm (8.5 x 14 in. )Minimum 50.8 x 50.8 mm (2 x 2 in. )Long Page Scanning*6 5,588 mm (220 in. )Paper Weight (Thickness) ADF Paper: 40 to 127 g/m2 (11 to 34 lb)
For A6 or smaller: 40 to 209 g/m2 (11 to 56 lb)
For A8 or smaller: 127 to 209 g/m2 (34 to 56 lb)Manual Feed Paper: 20 to 413 g/m2 (5.4 to 110 lb)
Plastic card: 1.4mm or less
Booklet: 5mm or lessADF Capacity*7 20 sheets (A4 80 g/m2 or Letter 20 lb)
30 sheets (A4 52 g/m2 or Letter 14 lb)Expected Daily Volume*8 4,500 sheetsMultifeed Detection Overlap detection (Ultrasonic sensor)Interface USB 3.2 Gen1x1 / USB 2.0 / USB 1.1Power Requirements AC 100 to 240 V ±10 %Power Consumption Operating Mode 19 W or lessSleep Mode 1.7 W or lessAuto Standby (Off) Mode 0.15 W or lessOperating Environment Temperature 5 to 35 °C (41 to 95 °F)Relative Humidity 20 to 80% (Non-condensing)Environmental Compliance ENERGY STAR, RoHSDimensions*9 (W x D x H) 296 x 105 x 83 mm (11.7 x 4.1 x 3.3 in. )Weight 2.0 kg (4.4 lb)Supported Operating System Windows 11*10, Windows 10*10, Windows Server 2022, Windows Server 2019, Windows Server 2016, macOS, Linux (Ubuntu)
