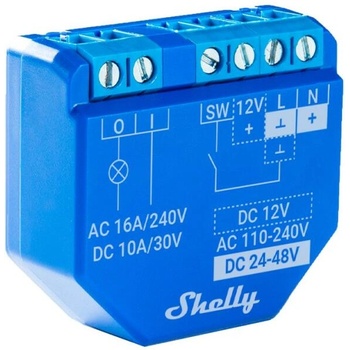

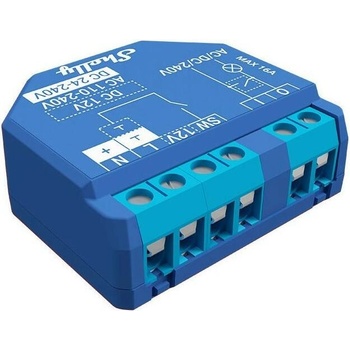

Shelly Plus 1

Shelly Plus 1

Control a wide range of home appliances and office equipment (lights, power lines, security systems, heaters, radiators, sockets, LED strips, etc. ) from anywhere.

Dry contacts
Extremely fast processor – ESP32, Improved API interface
Enhanced safety
Enhanced security - MQTT and WSS support, TLS and custom certificates support
Designed to fit in most standard electrical boxes and switches
Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants

POWER
Power supply AC: 110-230V ±10%, 50/60Hz
Maximum load: 16A
Power supply DC: 24 – 240V / 12V stabilized
Channels: 1 Channel

SPECIAL FUNCTIONS
Dry contacts: Yes
Roller shutter mode: No
Device temperature protection: Yes
Overload protection: No
Power measurement: No
Working without a neutral line: No

FEATURES
HTTP/HTTPS webhooks: Yes
Custom scripts (mJs): Yes
Operational temperature; -20°C to + 40 °C
Device power consumption: < 1 W
Intelligent On/Off; Yes
Local and remote control: Yes
Sunrise/Sunset: Yes
Weekly Schedule: Yes
UL Listed option: No

CONNECTIVITY
Wireless; Yes
Wi-Fi Protocol: 802.11 b/g/n
Wi-Fi Radio frequency: 2412 - 2484 MHz
Wi-Fi Radio signal power: 1mW
Wi-Fi Range: up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
Bluetooth; Yes

DIMENSIONS
Size: 42 x 38 x 17mm
