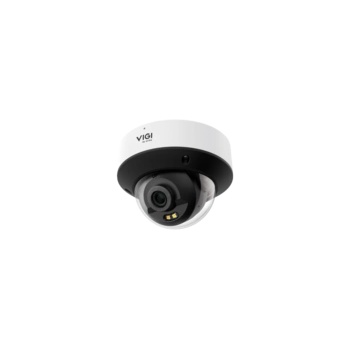

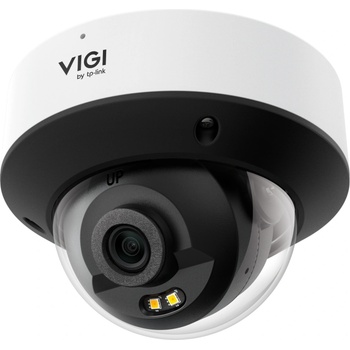

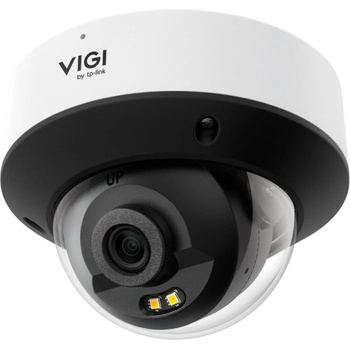

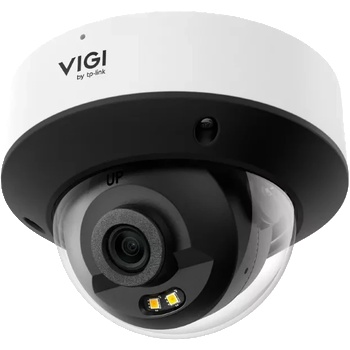

TP-Link INSIGHT S225(4mm)

InSight S225

VIGI 2MP Full-Color Dome Network Camera

• 2MP High Definition and 24h Full-Color
• Human & Vehicle Classification
• Smart Detection
• LightPro Night Vision
• Built-In Microphone
• Smart Video Enhancement Technology
• IP67 Waterproof and IK10 Vandal-Proof
• H. 265+ Compression Technology





Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.



LightPro Night Vision Technology

The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.



Параметър СтойностImage Sensor 1/3 Progressive Scan CMOSShutter Speed 1/3 до 1/10000 sSlow Shutter YesMinimum Illumination 0.2 Lux; 0 Lux с IR/White LightDay/Night Mechanism IR Cut FilterDay/Night Switch Unified / Scheduled / AutoType Fixed Focal LensFocal Length 4 mmAperture F2.0FOV (4 mm) Horizontal: 75.2°, Vertical: 40.8°, Diagonal: 88.3°Lens Mount M12DORI Distance (4 mm) Detect: 59 m (194 ft), Observe: 25 m (81 ft), Recognize: 12 m (39 ft), Identify: 6 m (19 ft)Pan 0° до 353.5°Tilt 0° до 75°Rotate 0° до 355°Illuminator On/Off Control Auto / Scheduled / Always On / Always OffIntegrated Infrared-White LED 2 бр. IR Range 30 m (98 ft)White LED Range 30 m (98 ft)IR Wavelength 850 nmMax. Resolution 1920 × 1080Main Stream Frame Rate 50Hz: 1/5/10/15/20/25 fps; 60Hz: 1/5/10/15/20/25/30 fpsMain Stream Resolution 1920×1080, 1280×960, 1280×720Main Stream Rotation Limitation При 90° ротация – до 20 fpsSub-Stream Frame Rate 50Hz: 1/5/10/15/20/25 fps; 60Hz: 1/5/10/15/20/25/30 fpsSub-Stream Resolution 848×480, 704×576, 640×480, 640×360, 352×288, 320×240Sub-Stream Rotation Limitation При 90° ротация – до 20 fpsBit Rate Control CBR, VBRVideo Compression (Main Stream) H. 265+, H. 265, H. 264+, H. 264Video Compression (Sub-Stream) H. 265, H. 264H. 264 Type High ProfileH. 264+ Supported on Main StreamH. 265 Type Main ProfileH. 265+ Supported on Main StreamMain Stream Bit Rate 256 Kbps – 4 MbpsSub-Stream Bit Rate 64 Kbps – 512 KbpsImage Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLCImage Enhancement BLC, 3D DNR, HLC, Smart IRWide Dynamic Range DWDRSNR ≥ 52 dBImage Parameters Switch YesPrivacy Mask До 4 маскиROI 1 RegionOSD Setting YesAudio Communication N/AAudio Input YesAudio Output N/AAudio Compression YesAudio Sampling Rate 8 KHzEnvironment Noise Filtering YesAudio Bit Rate 64 Kbps (G. 711 alaw)Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLSONVIF YesAPI Open Network Video Interface (Profile S/T)Simultaneous Live View 3 Main Streams & 3 Sub-StreamsClient VIGI APP, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config ToolWeb Browser Support Chrome 57+, Firefox 52+, Safari 11+, Edge 91+Cloud YesSecurity Password Protection, HTTPS Encryption, IP Address Filter, Digest AuthenticationSmart Event Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, People Detection, Vehicle DetectionBasic Event Motion Detection (с Human & Vehicle Classification), Camera Tampering, Illegal Login ExceptionAlarm Linkage Upload to FTP Server, Push Notifications, Alarm Server, Email AlarmNetwork Interface 1× RJ45 10/100M Ethernet Port, PoEAlarm N/AReset Button N/APower DC Power PortOn-board Storage N/ABuilt-in Microphone Yes; запис до 4.6 m (15 ft) радиусBuilt-in Speaker N/AAudio N/AOperating Temperature -30°C до 60°CStorage Temperature -40°C до 60°COperating Humidity ≤95% (Non-Condensing)Storage Humidity ≤95% (Non-Condensing)Package Content VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting AccessoriesMaterial MetalNet Weight 0.5 kgPower Supply (DC) 12V DC ±5%, Max. 6.3W, 5.5 mm Coaxial Power PlugPower Supply (PoE) 802.3af/at, Class 0, Max. 6.7WProtection IP67 Waterproof, IK10 Vandal ProofProduct Dimensions (L × W × H) Ø113.5 × 85.7 mm (Ø4.5 × 3.4 in)
