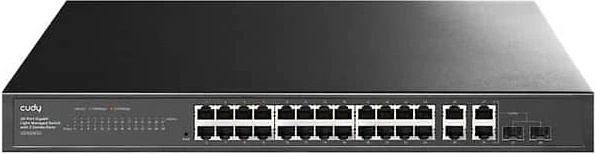

26-Port Gigabit Easy-Managed Switch with 2 Combo Ports A 26-GbE switch with 2 Gigabit RJ45/SFP combo ports and management features.

• 26× GbE, 2× Combo Ports
• Web Management, SNMP
• VLAN (802.1Q/MTU/Port-Based)
• QoS (802.1p/DSCP/Port-Based)
• Port Mirror, Static Aggregation, etc
• DHCP Snooping, IGMP Snooping
• EEE (802.3az Power Saving)
• 440×180×44 mm (17.32×7.09×1.73'')

   Secure and High-Performance Switching Feature ValueFlash/ROM 16 MB (128 Mbit) NORGigabit RJ45/SFP Combo Ports 2Gigabit RJ45 Ports 26Shielded RJ45 Port —Extend Mode Ports ConfigurableVLAN Mode Ports ConfigurableLED Power; Speed/Link/Act of Each Ethernet PortPhysical Buttons Reset ButtonMax Copper Speed and Distance Cat. 3 or higher cable: 100 meters at 10 Mbps; Cat. 5 or higher cable: 100 meters at 100 Mbps; Cat. 5e or higher cable: 100 meters at Gigabit; Cat. 5e or higher cable: 250 meters at 10 MbpsCopper Speed and Distance Note 250-meter transmission is available when the port speed is set at 10 Mbps in the software. Optical Spec and Distance Depends on the Installed Optical ModuleMAC Address Table 8192VLANs 4096Max Switching Capacity 56 GbpsMax Forwarding Rate 41.664 MppsJumbo Frame 15 KBPacket Buffer 4 MbitPower Input Type AC InletBasic Power Saving —Power Methods ACPower Input 100–240V~ 50/60HzMax Power Consumption 15WIdle Power Consumption 10W802.3 Protocols 802.3x Flow Control; 802.3i 10BASE-T; 802.3u 100BASE-TX; 802.3ab 1000BASE-T; 802.3z 1000BASE-X; 802.3az Power Saving802.1 Protocols 802.1p: LAN Layer 2 QoS/CoS; 802.1q: VLAN Bridge Operation; 802.1ab: LLDP/LLDP-MEDPort Management Port On/Off; Port Negotiation Speed; Port Trunk (Static Aggregation); Port Mirror; Data Rate Limit; Jumbo Frame Settings; Storm Control; Traffic Monitor; MAC Address Management; EEE (802.3az)Port Mirror Sessions 4Port Trunk Groups 4Max Port Num per Port Trunk Group 8L2 Features IGMP Snooping; Loop Prevention; Loop Detection; DHCP Snooping; LLDP Config and Neighbors; MTU VLAN; Port-Based VLAN; 802.1Q VLAN; DSCP QoS; 802.1p QoS; Port-Based QoSGrounding Methods Three-Prong Plug; Grounding PointEMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV; IEC/EN 61000-4-5, Level X Surge: Power: DM 4kV, CM 4kV; RJ45: CM 6kVEnvironment Operating Temperature: 0~40 ℃ (32~104 ℉); Storage Temperature: -40~70 ℃ (-40~158 ℉); Operating Humidity: 10~90% non-condensing; Storage Humidity: 10~95% non-condensingControl Methods Config Web Page; SNMP V1/V2; Cudy App (Coming Soon)Firmware Upgrade Local UpgradeReliability Backup and RestoreDiagnostic Tools Cable Status/Length Diagnosis; PingLanguages English; Bengali; German; Spanish; French; Portuguese; Russian; Arabic; Indonesian; Hindi; Urdu; Traditional Chinese; Simplified ChineseDimension 440 × 180 × 44 mm (17.32 × 7.09 × 1.73 inches)Product Weight 1842.5 g (64.99 oz. )Casing Material MetalInstallation Desktop; Rackmount via Brackets

Продукт известен още и като GS 1028 ES 2, GS 1028ES2, GS10 28ES 2
