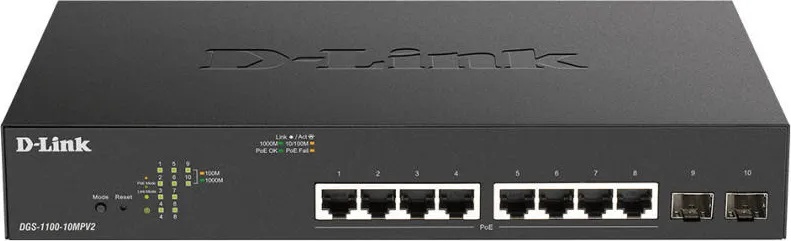

D-Link DGS-1100-10MPV2

Size
11-inch desktop (rack mount included), 1U height

Number of Ports
8 x 10/100/1000 Mbps (PoE)
2 x 100/1000 Mbps SFP

Port Functions
IEEE 802.3 for Ethernet
IEEE 802.3u for Fast Ethernet
IEEE 802.3ab for Gigabit Ethernet
IEEE 802.3af/at/bt
IEEE 802.3az compliant

Performance
Switching Capacity 20 Gbps
Maximum Forwarding Rate 14.88 Mpps
MAC Address Table Size 8K Entries
Packet Buffer 4.1 Mbits
Flash Memory 16 Mbytes

PoE Standard IEEE 802.3af/ 802.3at
PoE Capable Ports Ports 1 to 8
PoE Power Budget 130 W

Power Consumption
Standby Mode 5.6 W

Maximum Power Consumption
164.6 W (PoE on)
11.7 W (PoE off)

Physical
Power Input
100 to 240 V AC
50 to 60 Hz Internal Power Supply
MTBF 406,887 hours
Acoustics 37 dB(A) (high speed)
36.2 dB(A) (low speed)

VLAN Port-based VLAN
802.1Q tagged VLAN
Surveillance VLAN
Voice VLAN
Management VLAN
VLAN Group
Supports 32 static VLAN groups
Max. 4094 VIDs
Asymmetric VLAN

L2 Features Flow Control
802.3x Flow Control
HOL Blocking Prevention
Jumbo frames up to 9216 bytes
IGMP Snooping
IGMP v1/v2 Snooping
Supports 128 Groups
Static Trunk
DGS-1100-05V2/05PDV2: 1 group
DGS-1100-08V2/08PV2: 2 groups
Loopback Detection
Cable diagnostics
Port mirroring
One-to-One
Many-to-One
Statistics
Tx Ok
Tx Error
Rx Ok
Rx Error

Quality of Service (QoS) 802.1p Quality of Service
4 queues per port
Queue handling
Strict
Weighted Round Robin (WRR)
Bandwidth control
Port-based (Ingress/Egress, min. granularity 8 Kb/s)
DSCP

Security Static MAC addresses
Up to 32 entries
Traffic segmentation
Broadcast/Multicast/Unknown Unicast Storm Control
Port security

Management
Web-based GUI (Supports IPv4) D-Link Network Assistant (DNA)
Green Technology Compliant with RoHS 10 Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE)
RFC Standard List RFC768 UDP
RFC791 IP
RFC792 ICMP
RFC793 TCP
RFC826 ARP
IEEE 802.1p
RFC2236, IGMP Snooping
RFC1213 MIBII
RFC1215 MIB Traps Convention

VLAN Port-based VLAN
802.1Q tagged VLAN
Auto Surveillance VLAN
Voice VLAN
Management VLAN
Asymmetric VLAN
VLAN Group
Supports 128 static VLAN groups
Max. 4094 VIDs

L2 Features Flow Control
802.3x Flow Control
HOL Blocking Prevention
Jumbo frames up to 10,000 Bytes
IGMP Snooping
IGMP Snooping V1/V2/V3 awareness
Supports 128 Groups
IGMP Snooping Querier
802.3ad Link Aggregation:
Support max 8 groups per device and 8 ports per group
Loopback Detection
Cable diagnostics
LLDP
Port Mirroring
One-to-One
Many-to-One
Statistics
Tx Ok
Tx Error
Rx Ok
Rx Error
Spanning Tree Protocol
802.1D STP
802.1w RSTP

Quality of Service (QoS) 802.1p Quality of Service
8 queues per port
Queue handling
Strict
Weighted Round Robin (WRR)
Port-based bandwidth control (rate limiting)
Ingress: 16 Kbps
Egress: 16 Kbps

Security D-Link Safeguard
Traffic segmentation
Broadcast/Multicast/Unknown Unicast Storm Control
DoS attack prevention
SSL

Management
Web-based GUI (supports IPv4/IPv6) Client-based D-Link Network Assistant (DNA)
Green Technology Power saving by
Link status, LED shut-off, Port shut-off, System hibernation
Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE)
Compliant with RoHS 10

MIB/RFC Standards RFC768 UDP
RFC791 IP
RFC792 ICMP
RFC793 TCP
RFC826 ARP
RFC1213 MIB II
RFC1493 Bridage MIB
RFC1907 SNMPv2 MIB
RFC1215 MIB Traps Convention
RFC2233 Interface Group MIB
RFC2665 Ether-like MIB
RFC4363 IEEE 802.1p MIB
ZoneDefense MIB
Private MIB
RFC951 BootP client
RFC1542 BootP/DHCP client
RFC2236 IGMP Snooping
