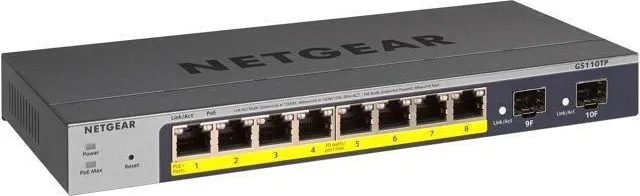

NETGEAR GS110TPv3 8 x 1G PoE+ Up to 55W 2 x SFP Smart Managed switch





Manufacturer
NETGEAR

Manufacturer Part No
GS110TP-300EUS



Marketing Description

The GS110TPv3 adds full 8 port PoE support for deployment of modern PoE devices. Cautious spender organizations can now deploy PoE devices connected to a cost effective switch, with a reasonable PoE power budget of 55W. Each port can provide up to 30 watts to power up connected devices. Fanless, the GS110TPv3 supports perfectly silent desktop operation or wall mounting.

Product Features

Enhanced securityWith support for RADIUS and TACACS+ authentication methods, alongside TLS 1.2 encryption, the NETGEAR Smart GS110TPv3 ensures secure network access and data transmission.
Robust performanceFeaturing a 20 Gbps switching fabric bandwidth and a forwarding performance of 14.8 Mpps, this switch is designed to handle demanding network environments efficiently.
Comprehensive network managementManageable via HTTP, HTTPS, SNMP, and more, the GS110TPv3 offers advanced control over your network, including features like Access Control List (ACL) support, Advanced QoS, and IGMP snooping for optimized performance.
Power and connectivityEquipped with 8 PoE+ ports and a total PoE budget of 55 W, along with two SFP slots for fiber connectivity, this switch supports a wide range of devices and deployment scenarios.
Energy-efficient designThe fanless design not only ensures silent operation but also incorporates ENERGY STAR for reduced power consumption, making it an eco-friendly choice for any business.

General

Device Type
Switch - 8 ports - smart

Enclosure Type
Desktop, wall-mountable

Subtype
Gigabit Ethernet

Ports
8 x 10/100/1000 (PoE) + 2 x SFP

Power Over Ethernet (PoE)
PoE+

PoE Budget
55 W

Performance
Switching fabric bandwidth: 20 GbpsForwarding performance (64-byte packet size): 14.8 Mpps

Capacity
Packet buffer size: 512 KBACL entries (ingress): 100VLANs supported: 64IPv4 routes (static): 32

MAC Address Table Size
8K entries

Jumbo Frame Support
10KB

Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD

Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, IPv6

Encryption Algorithm
TLS 1.2

Authentication Method
RADIUS, TACACS+

Features
IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, MLD snooping, fanless, LACP, DHCP client, dual firmware images, loop prevention, tagged VLAN, cable test, LLDP-MED, protected ports, EEE, WRR, Advanced QoS, Unknown Storm Control, security slot (Kensington security lock compatible)

Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

Processor
: 500 MHz

RAM
128 MB

Flash Memory
32 MB

Status Indicators
Port status, PoE, link/activity/speed

Expansion / Connectivity

Interfaces
8 x 1000Base-T RJ-45 PoE+2 x 1000Base-X SFP

Power

Power Device
External power adapter

Voltage Required
DC 54 V

Power Consumption Operational
69.5 Watt

Power Consumption Stand by
4.3 Watt

Miscellaneous

Included Accessories
Wall mounting kit

MTBF
1,200, 041 hours

Localisation
Europe

Dimensions & Weight

Width
23.6 cm

Depth
10.1 cm

Height
2.7 cm

Weight
610 g

Manufacturer Warranty

Service & Support
Limited warranty - replacement - lifetime - response time: next business dayLimited warranty - power supply - 2 yearsTechnical support - phone consulting - 90 days

Environmental Parameters

Min Operating Temperature
0 °C

Max Operating Temperature
40 °C

Humidity Range Operating
95% (non-condensing)

Min Storage Temperature
-20 °C

Max Storage Temperature
70 °C

Humidity Range Storage
95% (non-condensing)

Technical data provided by third party. We assume no liability for errors within these data.
