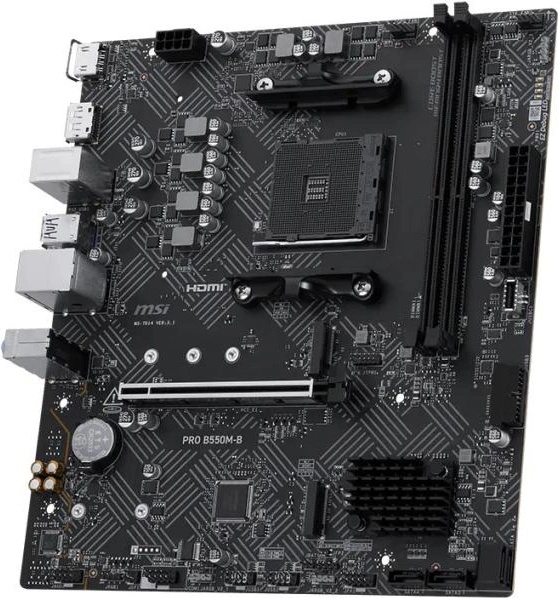

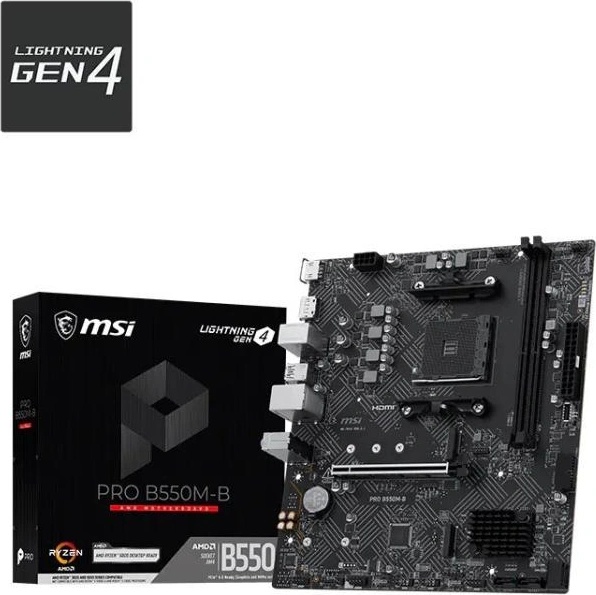

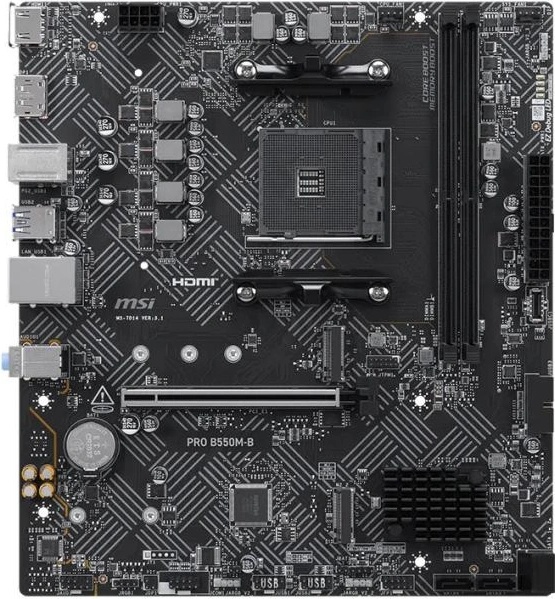

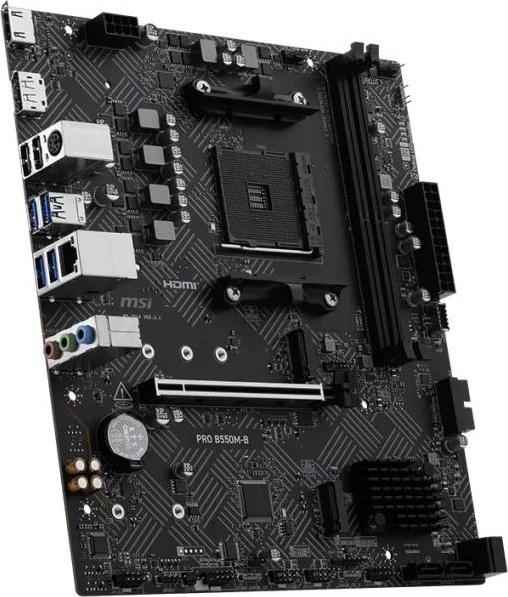

MSI PRO B550M-B PRO B550M-B is engineered with PCIe 4.0 M. 2, Frozr AI Cooling, and Front Type-C, ready for the AMD Ryzen 5000 series processors.

• Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series processors
• Supports DDR4 Memory, up to 4600+ MT/s (OC)
• Lightning Fast Experience: PCIe 4.0 slot and Lightning Gen4 x4 M. 2
• EZ DIY: EZ Debug LED, EZ Mounting
• Audio Boost: Reward your ears with studio-grade sound quality
• MSI Center: A brand-new software which integrates all MSI exclusive tools with user-friendly user interface.

    Chipset AMD B550 CPU Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors; Socket AM4 Memory 2× DDR4 DIMM; Maximum Memory Capacity: 64GB; Memory Support: DDR4 2667 / 2800 / 2933 / 3000 / 3066 / 3200 / 3466 / 3600 / 3733 / 3866 / 4000 / 4133 / 4266 / 4400 / 4600+ MHz (A-XMP OC Mode); Max. overclocking frequency: 1DPC 1R up to 4600+ MHz, 1DPC 2R up to 3866+ MHz; Supports JEDEC Speed; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Memory Overclocking by A-XMP OC mode; DIMM slots feature double-sided latches; Memory compatibility and supported speeds depend on CPU and memory configuration Onboard Graphics 1× HDMI (HDMI 2.1, up to 4K 60Hz); 1× DisplayPort (DP 1.2, up to 4K 60Hz); Available only with processors featuring integrated graphics; Graphics specifications depend on installed CPU Expansion Slots 1× PCI-E x16 slot (PCI_E1); PCIe 4.0 x16 (from CPU); Supported specification depends on installed processor Audio Realtek® ALC897 Codec; 7.1-Channel High Definition Audio Storage 2× M. 2: M. 2_1 (from CPU) supports PCIe 4.0 x4 / SATA mode, 2280/2260/2242 devices; M. 2_2 (from Chipset) supports PCIe 3.0 x4, 22110/2280 devices; 4× SATA 6Gb/s; Supported specification depends on installed processor RAID Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, and RAID 10 for M. 2 NVMe storage devices USB Rear: 2× USB 2.0, 4× USB 5Gbps Type-A; Front: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 5Gbps Type-C LAN Realtek® RTL8111H 1Gbps LAN Internal IO 1× ATX_PWR; 1× CPU_PWR; 1× CPU Fan; 1× System Fan; 2× Front Panel (JFP); 1× Chassis Intrusion (JCI); 1× Front Audio (JAUD); 1× COM Port (JCOM); 3× Addressable V2 RGB LED (JARGB_V2); 1× RGB LED (JRGB); 1× TPM pin header (TPM 2.0); 4× USB 2.0 ports; 2× USB 5Gbps Type-A ports; 1× USB 5Gbps Type-C port LED Feature 4× EZ Debug LED Back Panel Ports 1× HDMI; 1× DisplayPort; 2× USB 2.0; 4× USB 5Gbps Type-A; 1× LAN (RJ-45); Keyboard / Mouse port; Audio connectors Operating System Supports Windows® 11 64-bit; Windows® 10 64-bit Box Content Not specified PCB Info mATX; 220 × 243.84 mm

Продукт известен още и като PRO B 550 M B, PROB550MB, PRO B550M B, PROB550M-B

Галерия
