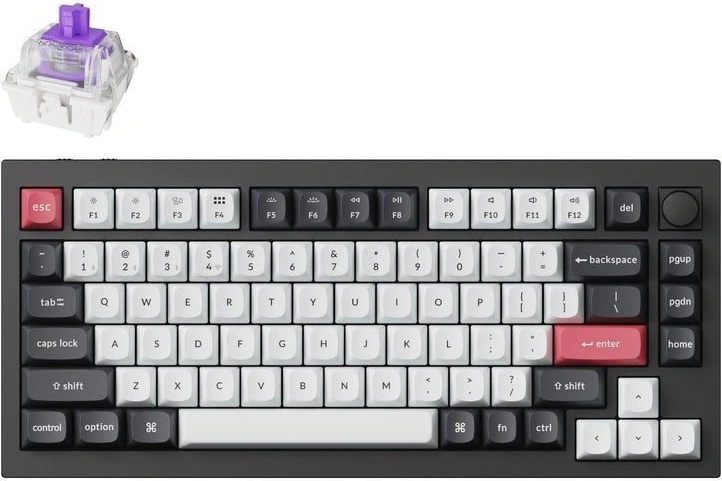

Keychron Q1 HE Meet the Q1 HE, the world's first 75% layout wireless QMK custom keyboard equipped with Hall Effect Gateron double-rail magnetic switches. These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements for the gaming experience tailored to your individual preferences.   Gateron Double-Rail Magnetic Hall Effect Switches With the first invented dual-rail structure, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.   A Piece Of Metal Art The entire metal body is crafted from 6063 aluminum, a material known for its increased durability, stability, and premium feel. Not only is this aluminum more resistant to physical damage, wear, and tear, but it is also environmentally friendly and recyclable. These qualities ensure both aesthetic appeal and a commitment to sustainability.   Customize Every Part To build a fully customizable keyboard, we designed every component to be able to assemble easily. Therefore, you can customize and adjust each component as you wish.   Double-Gasket Design Silicone pads between the top and bottom cases reduce acoustic resonance, maintaining gasket flexibility and enhancing typing sound. The keyboard's bottom has an acoustic pad, improving sound quality with a slight impact on flexibility. Users seeking more flexibility can opt to remove the acoustic pad. An Epic Core Inside The Keyboard Engineered with a powerful chip (MCU) with 256K flash and QMK open-source firmware to provide more flexibility for developers. The polling rate is 1000 Hz out of the box in Type-C wired mode and 2.4 GHz mode, which greatly helps when competitively gaming. OSA Profile Double-shot PBT Keycaps It has a similar height to that of the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out. Hot-swappable

Unlike mechanical switches, which depend on physical contact, Hall Effect magnetic switches use magnets to detect key presses. It is effortless to swap out the switch with compatible Hall Effect magnetic switches. Specifications  Width 145 mmLength 327.5 mmFront Height 22.6 mm  (without keycaps)Back Height 35.8 mm (without keycaps)Feet Height 2.4 mmAngle 5.2°Weight 1735 g ± 10 g (Fully Assembled version)Body Material AluminumPlate Material AluminumPolling Rate 1000 Hz (Wired and 2.4 GHz) / 90Hz (Bluetooth)N-Key Rollover (NKRO)  Yes for both wireless and wired modesRapid Trigger YesAdjustable Actuation Points 0.2 - 3.8 mmDynamic Keystrokes 4-in-1 action keysSensitivity 0.1 mmKeycap OSA Double-shot keycaps, not shine-throughMCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
 Backlight South-facing RGB LEDSwitch Gateron double-rail magnetic switch
 Hot-swappable Support Yes, compatible with Gateron double-rail magnetic switch only. Stabilizer Screw-in PCB stabilizerCable Type-C cable (1.8 m) + Type-A to Type-C adapterConnectivity 2.4 GHz / Bluetooth / Type-C wiredBluetooth Version  5.1Bluetooth Device Name Keychron Q1 HEBattery 4000 mAh Rechargeable li-polymer batteryOperating Environment -10 to 50℃Wireless Working Time (Backlit off)   Up to 100 hours

Продукт известен още и като Q 1 H M 1, Q1HM1, Q1H M1, Q 1H-M1, Q 1H-M 1
