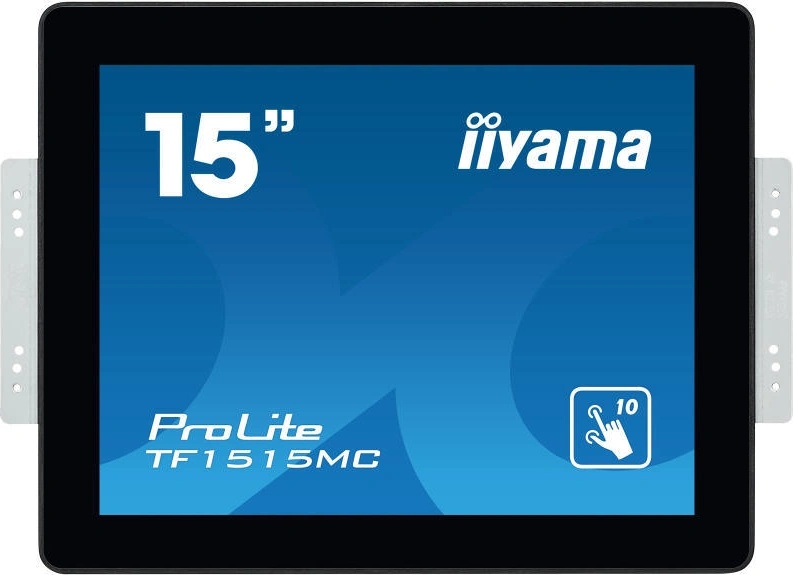

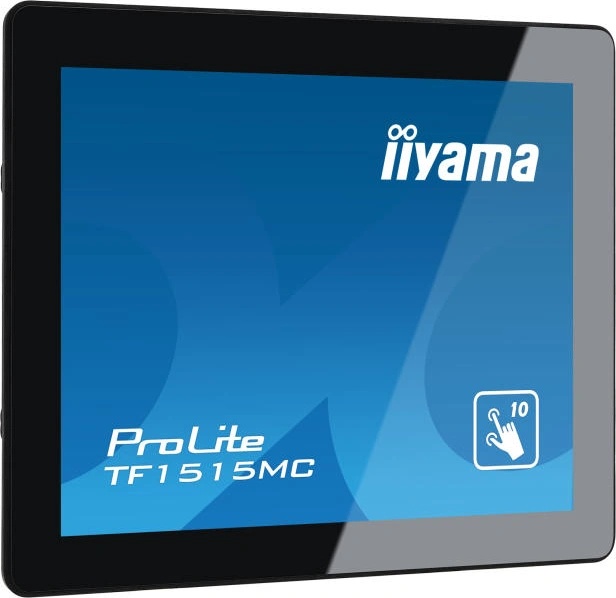

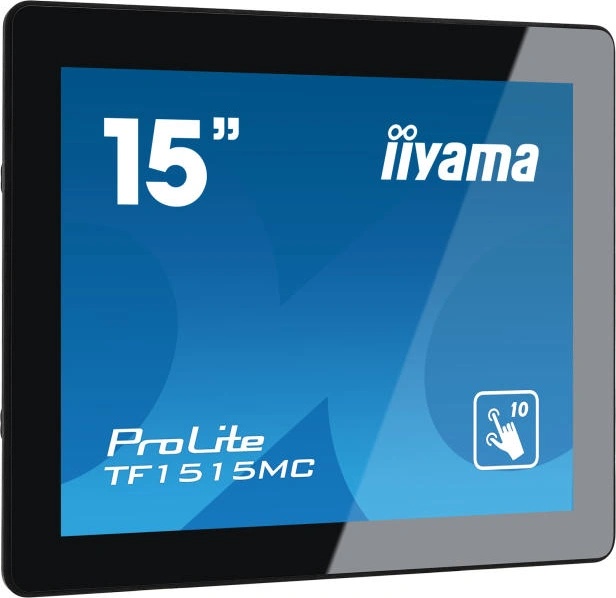

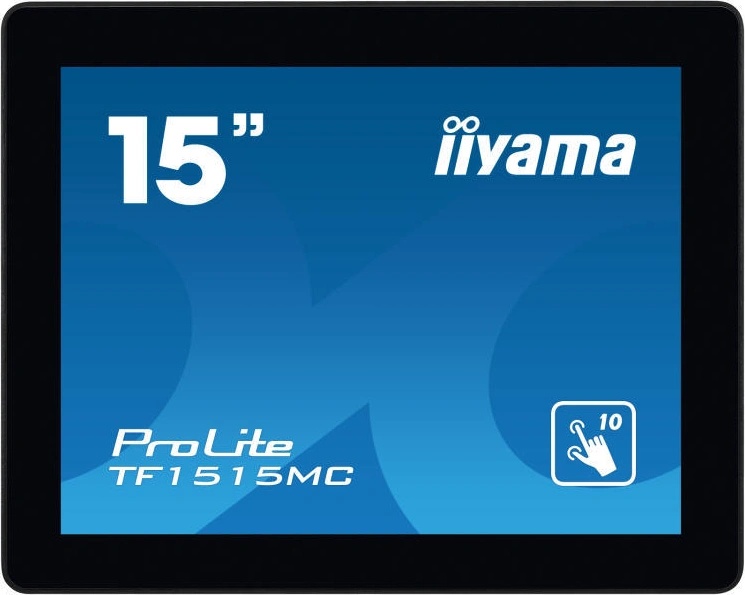

IIYAMA TF1515MC-B2

Design
Open Frame

Diagonal
15", 38cm

Panel
TN LED

Native resolution
1024 x 768 (0.8 megapixel)

Aspect ratio
4:3

Brightness
350 cd/m2 typical

Brightness
315 cd/m2 with touch

Static contrast
800:1 with touch

Light transmittance
90%

Response time (BTB)
8ms

Viewing zone
horizontal/vertical: 160°/150°, right/left: 80°/80°, up/down: 75°/75°

Colour support
16.2mln (6bit + Hi-FRC)

Horizontal Sync
31.4 - 60kHz

Viewable area W x H
304.1 x 228.1mm, 12 x 9"

Pixel pitch
0.297mm

Bezel colour and finish
black



Touch technology
projective capacitive

Touch points
10 (HID, only with supported OS)

Touch method
stylus, finger, glove (latex)

Touch interface
USB

Supported operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

Through-Glass
6mm

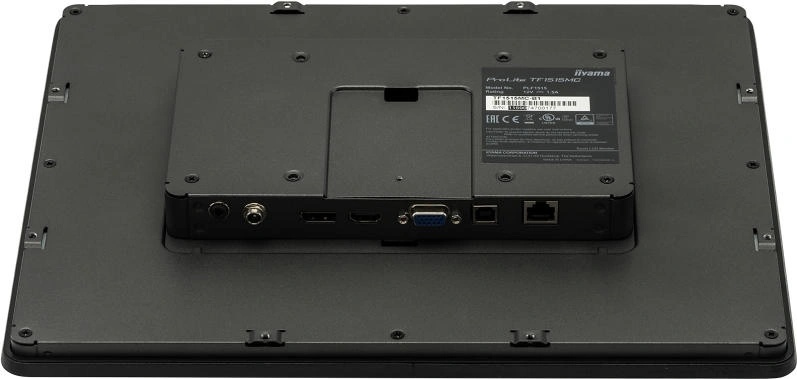

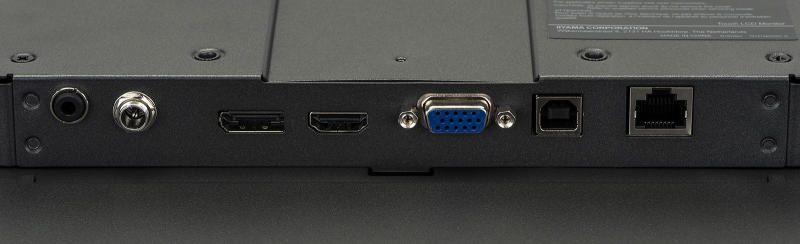

Analog signal input
VGA x1

Digital signal input
HDMI x1

DisplayPort x1

Audio output
Mini jack x1

HDCP
yes



Extra
anti-fingerprint coating, touch through-glass, foam seal

60950 Ball drop test
yes

Water and dust protection
IP65 (front)

OSD key lock
yes



OSD languages
EN, DE, FR, ES, IT, CN, JP

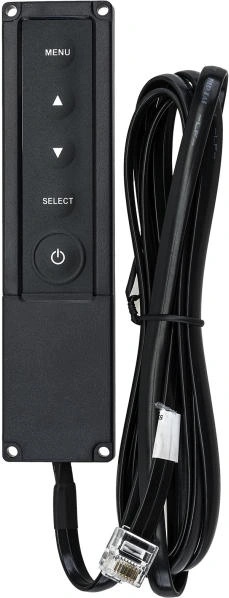

Control buttons
menu, scroll up/ brightness, scroll down/ contrast, select, power

User controls
picture (contrast, brightness, H. position, V. position, H. size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch), option (reset, language, source select, display mode, factory)

Plug&Play
DDC2B

MECHANICAL

Orientation
landscape, portrait, face-up

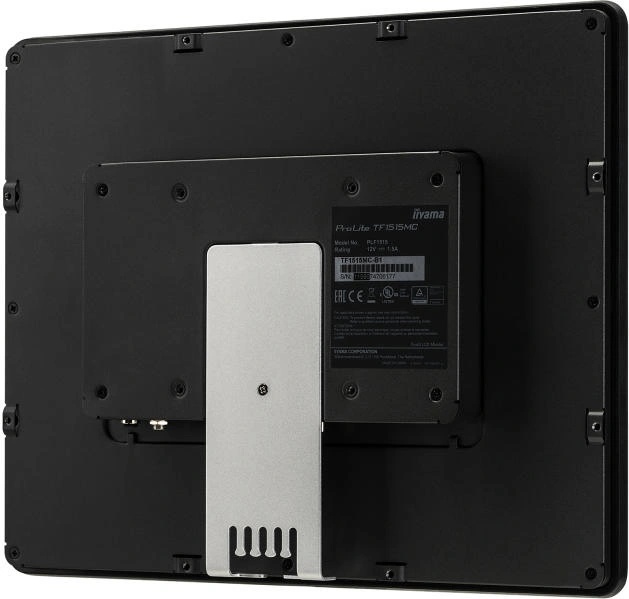

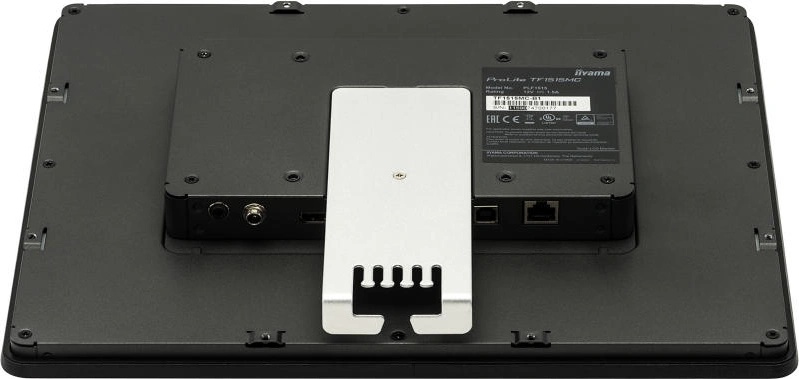

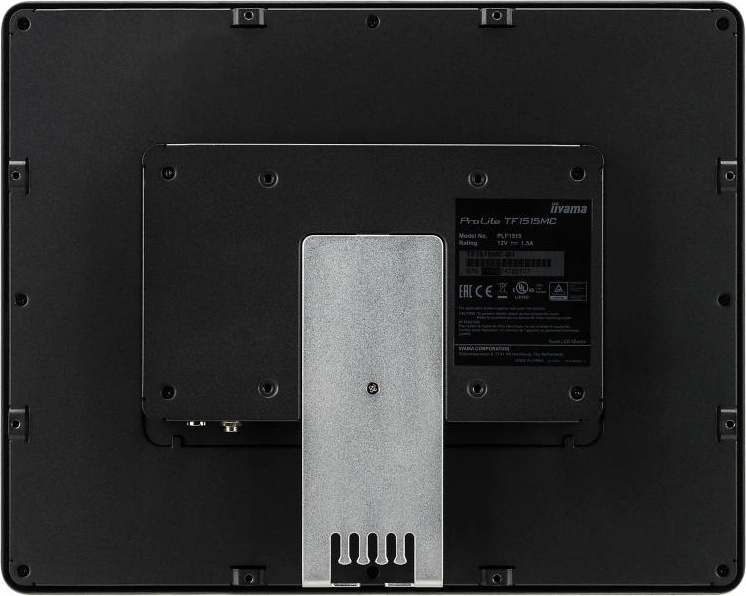

VESA mounting
100 x 100mm

Operation temperature range
0°C - 40°C

Storage temperature range
- 20°C - 60°C
