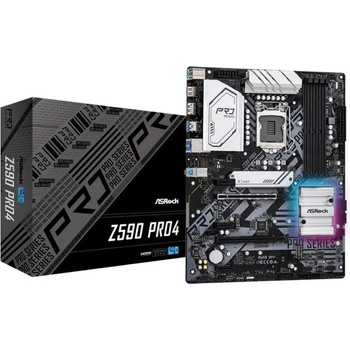

ASRock Z590 Pro4

Технически детайли

Graphics:11th Gen Intel® Core Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core Processors support Gen 9 Graphics; Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1; Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, UHD/HDR Blu-ray Disc; Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers; Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz; Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required); Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports
CPU's supported:- Supports 10th Gen Intel® Core Processors and 11th Gen Intel® Core Processors (LGA1200); - Digi Power design; - 14 Power Phase design; - Supports Intel® Turbo Boost Max 3.0 Technology; - Supports Intel® K-Series unlocked CPUs
Chipset:- Intel® Z590
Expansion Slots:11th Gen Intel® Core Processors; - 2 x PCI Express x16 Slots (PCIE2/PCIE4: single at Gen4x16 (PCIE2); dual at Gen4x16 (PCIE2) / Gen3x4 (PCIE4))*; 10th Gen Intel® Core Processors; - 2 x PCI Express x16 Slots (PCIE2/PCIE4: single at Gen3x16 (PCIE2); dual at Gen3x16 (PCIE2) / Gen3x4 (PCIE4))*; - 3 x PCI Express 3.0 x1 Slots; - Supports AMD Quad CrossFireX and CrossFireX; - 1 x M. 2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT); - 15μ Gold Contact in VGA PCIe Slot (PCIE2)
Storage:- 6 x SATA3 6.0 Gb/s Connectors*; - 1 x Hyper M. 2 Socket (M2_1), supports M Key type 2260/2280 M. 2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel® Core processors only)**; - 1 x Ultra M. 2 Socket (M2_2), supports M Key type 2260/2280 M. 2 SATA3 6.0 Gb/s module and M. 2 PCI Express module up to Gen3 x4 (32 Gb/s)**; - 1 x Ultra M. 2 Socket (M2_3), supports M Key type 2260/2280/22110 M. 2 SATA3 6.0 Gb/s module and M. 2 PCI Express module up to Gen3 x4 (32 Gb/s)**
Memory type:- Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - 11th Gen Intel® Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*; - 10th Gen Intel® Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 128GB**; - Supports Intel® Extreme Memory Profile (XMP) 2.0
I/O:- 3 x Antenna Mounting Points; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection); - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 2 x USB 2.0 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors:- 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 2 x RGB LED Headers*; - 2 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection); - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Audio:- 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Supports Surge Protection; - Nahimic Audio
LAN:- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
BIOS:- 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - ACPI 6.0 Compliant wake up events; - SMBIOS 2.7 Support; - CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST, VCCSA Voltage Multi-adjustment
Form Factor:- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Solid Capacitor design
OS:- Microsoft® Windows® 10 64-bit
Сайт на производителя:https://www. asrock. com/mb/Intel/Z590%20Pro4/index. asp#Specification
