1 x DisplayPort**1 x HDMI® port****Graphics specifications may vary between CPU types. Please refer to www. intel. com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' resolution. Expansion Slots Intel® 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x1 slot* Supports Intel® Optane Memory H Series on PCH-attached PCIe slot. Storage Total supports 2 x M. 2 slots and 4 x SATA 6Gb/s ports* Intel® 12th Gen Processors M. 2_1 slot (Key M), type 2242/2260/2280Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset** M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M. 2 slots. Ethernet 1 x Realtek 2.5Gb EthernetTUF LANGuard Wireless & Bluetooth Wi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth v5.2**Bluetooth v5.2 function will be ready in Windows 11 or later.   USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)4 x USB 3.2 Gen 2 ports (4 x Type-A)1 x USB 3.2 Gen 1 port (1 x Type-A)2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding- Power pre-regulator reduces power input noise to ensure consistent performance- Rear optical S/PDIF out port- Premium audio capacitors- Dedicated audio PCB layers Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)4 x USB 3.2 Gen 2 ports (4 x Type-A)1 x USB 3.2 Gen 1 port (1 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI® port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connector Storage related 2 x M. 2 slots (Key M)4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt header Software Features UEFI BIOS ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode BIOS 1 28 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows® 11 64-bit, Windows® 10 64-bit Form Factor mATX Form Factor24.4 cm x 24.4 cm

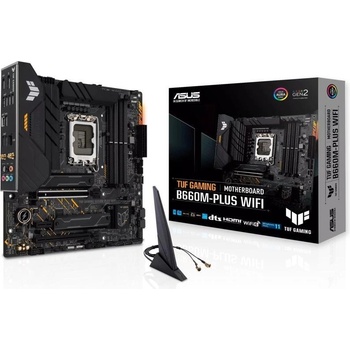

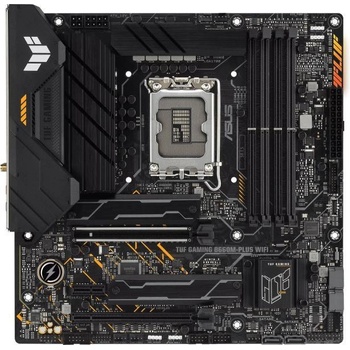

Продукт известен още и като TUF Gaming B 660 M PLUS WIFI, TUFGamingB660MPLUSWIFI, TUF Gaming B660M PLUS WIFI, TUFGamingB660M-PLUSWIFI
