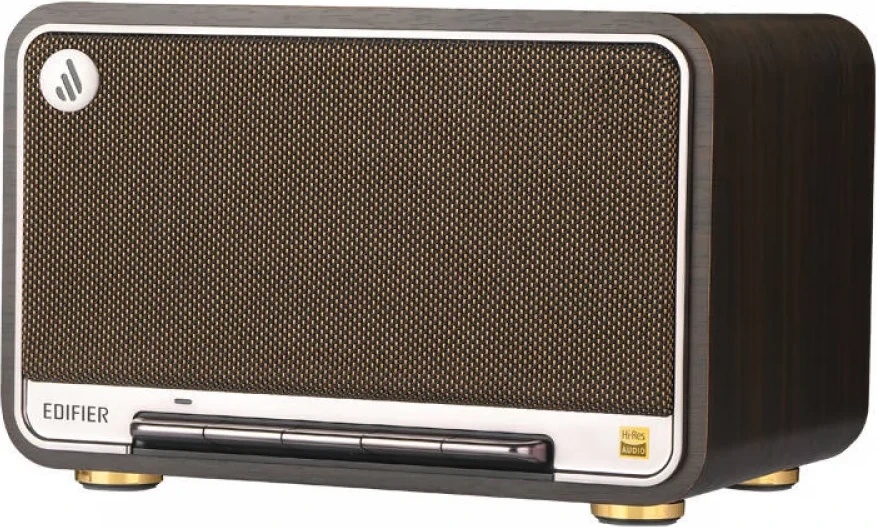

Edifier D32

Edifier D32 2.1 Speaker, BT V5.3, Wi-Fi, AUX, USB-C, 1x 4-inch Midrange Driver, 2x 1-inch Tweeters, 60W (RMS), White Edifier D32

Retro Design and Fashion Style

EDIFIER D32 is a retro-style and fashionable desktop combo speaker. The hand-made wooden speaker case, braided speaker grille, and accordion keyboard compose its visual identifier. Whatever style your room decor is, it can complement it well.

2.1 Acoustic Architecture

The hand-made wooden speaker case houses two 1" silk dome tweeters and one 4" long-throw mid-low driver. The MDF cabinet can effectively diminish resonance and distortion. Dual bass reflex ports can effectively enhance the bass level. With this configuration, it can deliver crisp highs, clear mids, and punchy bass.

End-to-end High Resolution Audio Process

The end-to-end digital audio process supports high resolution audio up to 24bit/96kHz. The analogue audio front end features special configuration to work at 24bit/96kHz, guaranteeing the bit perfect audio conversion.

The dual Class-D audio amplifiers from Texas Instruments provide precise two-way active crossover, magnifying high frequency signals and mid-low frequency signals separately, and manage DRC (dynamic range control) effectively.

Bluetooth Connection

The Bluetooth V5.3 audio receiver supports LDAC codec with the highest transmission bitrate up to 990kbps. You can stream high resolution audio up to 24bit/96kHz from your Android smart devices (Android 8.0 or later).

The speaker also supports the simultaneous connection of two Bluetooth devices. You can switch the audio source devices easily.

High Capacity Built-in Battery

A 7.4V/5,200mAh high-capacity battery pack is embedded in the cabinet, sufficient for a continuous playback up to 11 hours per charge.

* Playback time is related to volume, temperature, playlist and other factors. The values listed above are the test results from Edifier Lab.

Specifications

Total Output Power (RMS):

Treble 15W x 2, Mid-low 30W

Driver Units:

1" (Treble) + 4" (Mid-low)

Frequency Response:

52Hz - 40kHz

Signal-to-Noise Ratio:

≥ 85dB (A)

Audio Inputs:

Bluetooth, Wi-Fi, USB-C, AUX

lnput Sensitivity:

AUX: 450 ± 50mV
USB: 400 ± 50mFFS
Bluetooth: 400 ± 50mFFS

Bluetooth Version:

V5.3

Codec s:

SBC, AAC, LDAC

Dimensions (W x H x D):

250mm x 162mm x 179mm

Net Weight:

3.04kg
