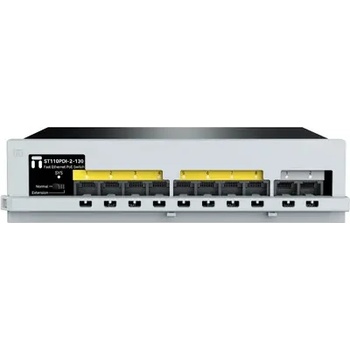

Stonet ST110PDI-2-130

ST110PDI-2-130

Fast Ethernet PoE Switch with Attached Safety Lock

• Attached safety lock, more stable connection.
• 10*10/100M ports: 8 PoE ports+2 uplink ports.
• Built-in 130W power supply with up to 30W PoE output per port.
• Durable steel shell for better heat dissipation.
• Support IEEE 802.3af/at standards, compatible with powered devices (PD) that meet IEEE 802.3af/at.
• All ports support auto MDI/MDI-X function.
• Equipped with a convenient DIP switch that can be easily switched between normal mode and extend mode.







More Durable!

Attached safety lock design, no need to install, it will keep your network cable fixed stable with the switch.

*Attached safety lock with exclusive patent certification, 100% quality assured.





Standard PoE Power Supply

Up To 30W PoE Output Per Port

ST106PDI-2-65 has a total power of 65W with 4*100M PoE ports and 2*100M uplink ports.
ST110PDI-2-130 has a total power of 130W with 8*100M PoE ports and 2*100M uplink ports.

It can support multiple IP cameras and other high-power devices running simultaneously, ensuring a stable and sufficient power supply.





Extend to 250M

Unlocking More Possibilities

Equipped with a convenient DIP switch. It can be easily switched between normal mode and extend mode to meet network needs in different environments and improve deployment flexibility.





Ingenious Design Lowers Failure Rates

With the port designed upside down, it reduces the risk of damages from dust/humidity when connecting with cables. The attached safety lock also helps preventing dust from entering the switch, in order to avoid metal corrosion/board short circuit. Meanwhile in thunderstorm/humid environments, it helps to reduce product failure rates.



Multiple Protections

Ensure Safety without Worries

Built-in 4KV common-mode and differential-mode lightning protection module can effectively resist lightning strikes and surges.
At the same time, it has overcurrent, overload and short-circuit protection functions.



Specification Item DetailsPower Indicator Lights up when the device is powered onFunction Indicator Lights up when the extended transmission function is enabledSwitch Ports Normal mode / Cable Extension modePorts 8 × 100Mbps PoE ports + 2 × 100Mbps uplink portsBackplane Bandwidth 2 GbpsMAC Address Table 2KInput Power 100–240V ~ 50/60HzPower Supply 130W, 54V / 2.4AMaximum PoE Output Power 120WNetwork Media & Transmission Distance 100Base-TX: Cat5 or higher UTP/STP (≤100m); 10Base-TX: Cat6 or higher UTP/STP (≤250m)Basic Functions IEEE 802.3 / 802.3u compliant; supports IEEE 802.3af/at PD devices; compatible with non-standard PD; store-and-forward switching; automatic MAC learning & aging; extended transmission; IEEE 802.3X flow control; backpressure half-duplex controlEthernet Protocols & Standards IEEE 802.3, 802.3i (10BASE-T), 802.3u (100BASE-TX), 802.3af, 802.3at, 802.3xData Transfer Rates 10/100 Mbps (full-duplex & half-duplex)Operating Temperature 0°C ~ 40°CStorage Temperature -40°C ~ 70°COperating Humidity 10% ~ 90% RH (non-condensing)Storage Humidity 5% ~ 90% RH (non-condensing)Altitude Operating: max 2000m; Storage: max 2000mDifferential Mode 4KVCommon Mode 4KVDimensions (W × D × H) 190 × 140 × 43 mmProtective Packing EPE protectionStacking Limit Maximum 4 layers (fully packaged)Humidity 5% ~ 90% RH (non-condensing)Storage Temperature -40°C ~ 70°C (room temperature recommended)Storage Precautions Store in clean, ventilated area; avoid corrosive gases, flammable/explosive materials, heat sources, and vibrationStorage Period Up to 1 year; re-test recommended after 2 years
