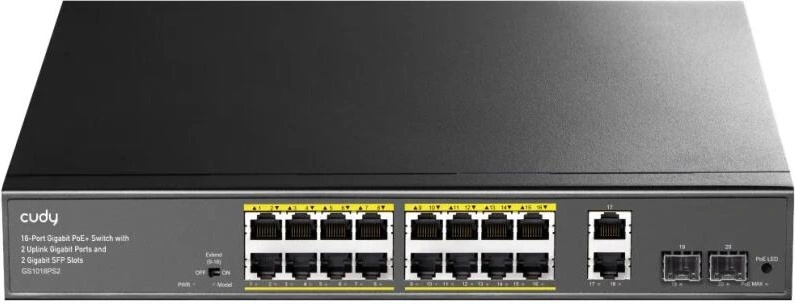

Cudy GS1018PS2 3.0    Reliabl e PoE for 24/7 Consistent Operation IEEE 802.3at/af. Up to 30W Per Port. Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices. PoE Auto Recovery Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.  Streamlined PoE Management Loved by Installers Built-In Modes for Practical Use Cases VLAN Isolates Downlink Ports for Improved Safety Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices. Extend for 250 m Transmission For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.  Exceptional Built-Quality for Stable Operation Build Robust Systems with Outstanding EMC Improves service reliability and reduces downtime caused by power surges and ESD. ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV Shielded Ports. Solid Metal Casing. Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.  Versatile ScenariosSurveillance Office Networking Campuses Wi-Fi Accesses and Signages  Specifications  Interfaces 1.25G SFP Slots 2  Gigabit RJ45 Ports 18  Gigabit RJ45 PoE Ports #1~#16  Max Power on a Single PoE Port 30W  PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.   PoE Priority Intelligent Power Management:
Automatically disconnect the lastly powered device when power exceeds budget.   Shielded RJ45 Port Yes  Extend Mode Ports #9~#16  VLAN Mode Ports #1~#16  LED

• Power
• PoE Status of Each PoE Port
• Link/ACT of Each Ethernet Port
• PoE Max Status

  Physical Buttons

• Extend On/Off
• VLAN On/Off
• PoE Watchdog On/Off
• PoE LED Toggle

  Physical Buttons Note The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature. Performance Max Copper Speed and Distance

• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 100 meters at Gigabit
• Cat. 5e or higher cable: 250 meters at 10 Mbps

  Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.   Optical Spec and Distance Depends on the Installed Optical Module  MAC Address Table 2048  Max Switching Capacity 40 Gbps  Max Forwarding Rate 29.76 Mpps  Jumbo Frame 15 KB  Packet Buffer 3 MbitPower Power Input Type AC Inlet  Power Methods AC  Power Input 100-240V~ 50/60Hz  Power Supply 200W  Max Power Excluding PoE 18WSwitching 802.3 Protocols

• 802.3i 10BASE-T
• 802.3u 100BASE-TX
• 802.3ab 1000BASE-T
• 802.3z 1000BASE-X
• 802.3x Flow Control
• 802.3af PoE
• 802.3at PoE

  PoE Management Intelligent Power ManagementReliability Grounding Methods Three-Prong Plug  EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV  Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensingMechanical Dimension 440×180×44 mm
17.32×7.09×1.73 inches  Product Weight 2257.1 g (79.62 oz. )  Casing Material Metal  Installation

• Desktop
• Rackmount via Brackets

Продукт известен още и като GS 1018 PS 2, GS 1018PS2, GS1018PS 2
