CPU
Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors

CHIPSET
AMD A520 Chipset

MEMORY
2x DDR4 memory slots, support up to 64GB 1
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Please refer www. msi. com for more information on compatible memory.

EXPANSION SLOT
1x PCIe 3.0 x16 slot (From AMD processor)1
Supports x16 speed with Ryzen 5000, 5000G, 4000G and 3000 processors
Supports x8 speed with Ryzen 3000G processors
Supports x4 speed with AMD® Athlon with Radeon Graphics processors
2x PCIe 3.0 x1 slots
The supported specification depends on installed processor.

ONBOARD GRAPHICS
1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz2
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160@60Hz1 2
Support HDCP 1.4 & 2.3
1x DisplayPort 1.4 port, supports a maximum resolution of 4096x2160 @60Hz1
Maximum shared memory of 16GB
Graphics specifications may vary depending on the CPU installed Available for the processor with integrated graphics.

STORAGE
AMD A520 Chipset
4x SATA 6Gb/s ports
1x M. 2 slot (From AMD processor, Key M)
Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen 5000, 5000G, 4000G, 3000 and 3000G processors
Supports SATA 6Gb/s with Athlon with Radeon Vega Graphics processors
Supports 2242/ 2260/ 2280 storage devices

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB
AMD A520 Chipset
2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO
Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio

LAN
1x Realtek® RTL8111H LAN controller

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x Serial port connector
1x M. 2 slot (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
1x TPM module connector
1x Clear CMOS jumper

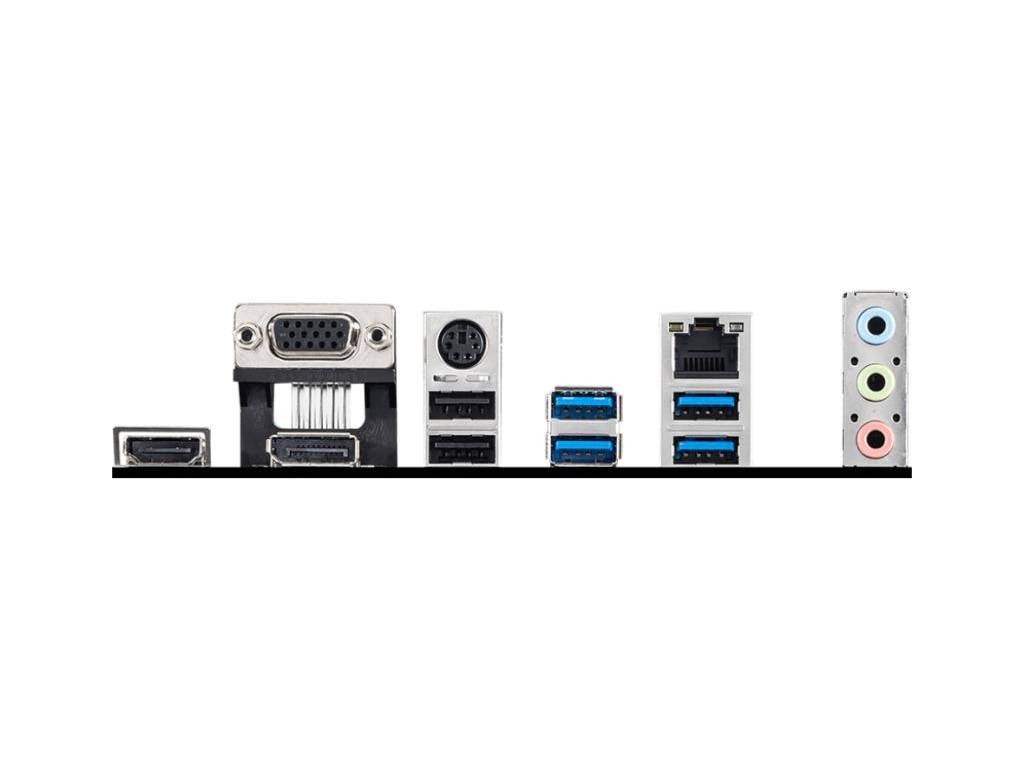

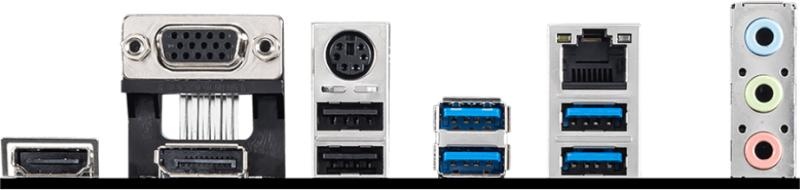

BACK PANEL PORTS
VGA
Keyboard / Mouse
LAN port
HDMI
DisplayPort
USB 2.0 Ports
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
Audio Connectors
B550M PRO-VDH WIFI

DIMENSIONS
M-ATX Form Factor
9.6 in. x 8.3 in. (24.4 cm x 21 cm)

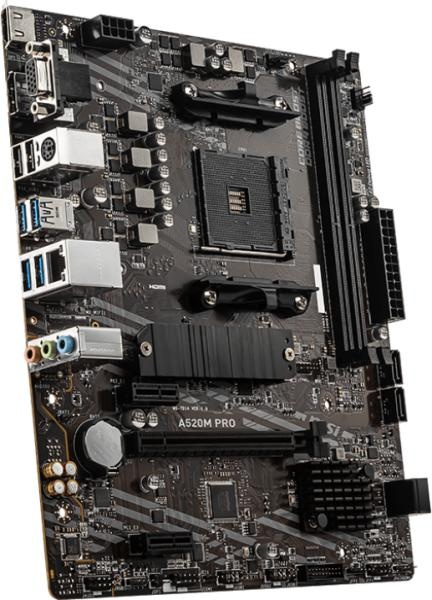

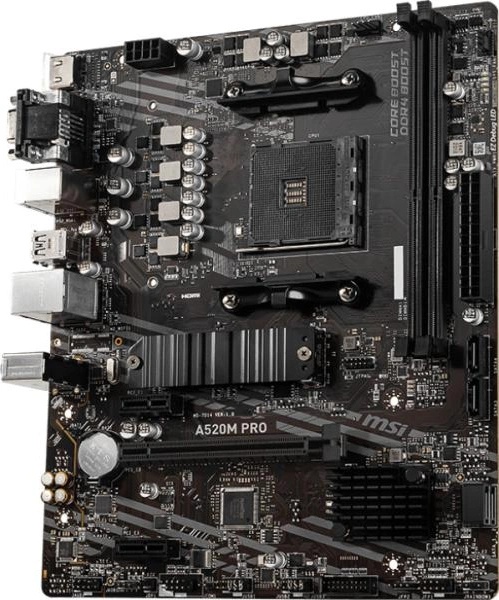

Продукт известен още и като A 520 M PRO, A520MPRO, A 520M PRO
