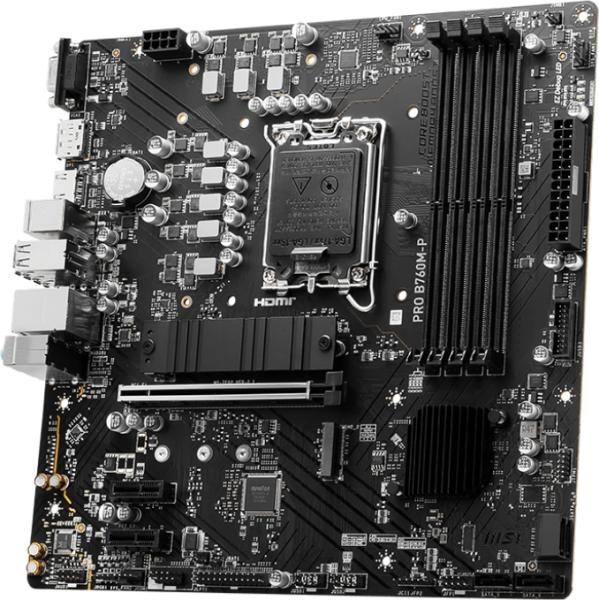

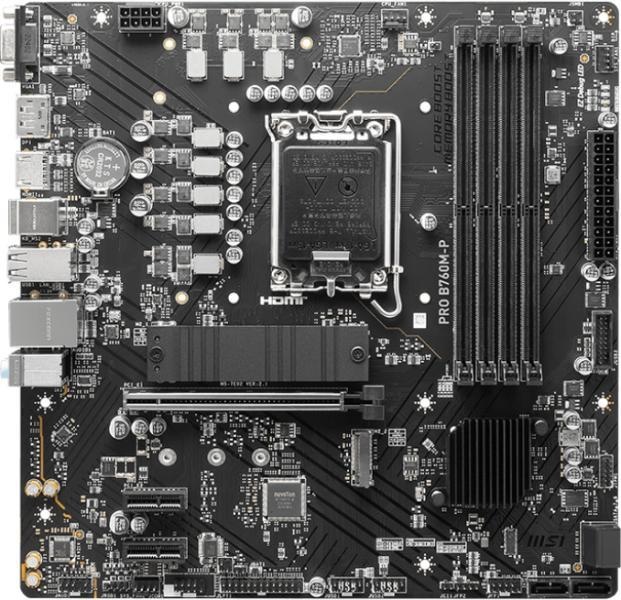

Product Specifications



CHIPSET

INTEL B760



CPU SUPPORT

Supports 12th/13th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors

LGA 1700



MEMORY

4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

1DPC 1R Max speed up to 6800+ MHz

1DPC 2R Max speed up to 6400+ MHz

2DPC 1R Max speed up to 6000+ MHz

2DPC 2R Max speed up to 5600+ MHz



Supports Intel® XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory



ONBOARD GRAPHICS

1x HDMI

Support HDMI 1.4, maximum resolution of 4K 30Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.



EXPANSION SLOT

1x PCI-E x16 slot

2x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)



STORAGE

2x M. 2

M. 2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M. 2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

* SATA5 will be unavailable when installing M. 2 SATA SSD in the M2_2 slot.



RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices



USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

1x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen2 Type C (Rear)



LAN

Realtek® RTL8111H Gigabit LAN



AUDIO

Realtek® ALC897 Codec

7.1-Channel High Definition Audio



INTERNAL I/O

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Printer Port (JLPT)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports



LED FEATURE

4x EZ Debug LED

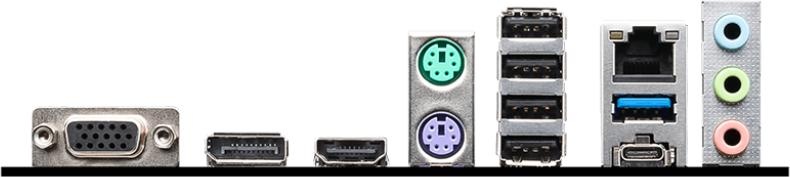

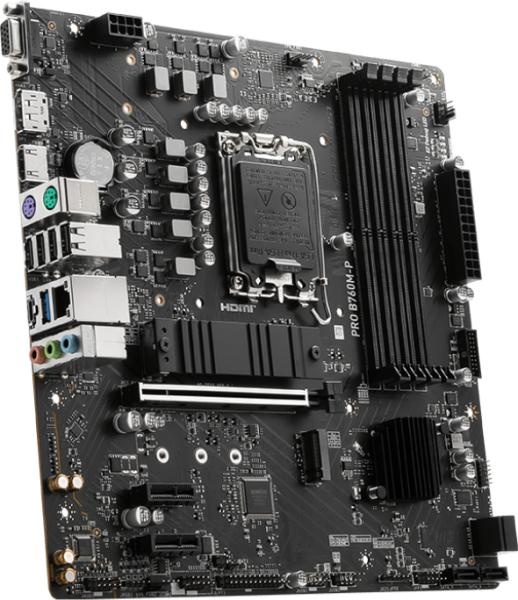

BACK PANEL PORTS

VGA

DisplayPort

HDMI

Keyboard / Mouse

USB 2.0

LAN port

Audio Connectors

USB 3.2 Gen 1 5Gbps (Type-A)

USB 3.2 Gen 2 10Gbps (Type-C)



OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit



PCB DIMENSION (W × L)

mATX

243.84mmx243.84mm




Продукт известен още и като PRO B 760 M P, PROB760MP, PRO B760M P, PROB760M-P
