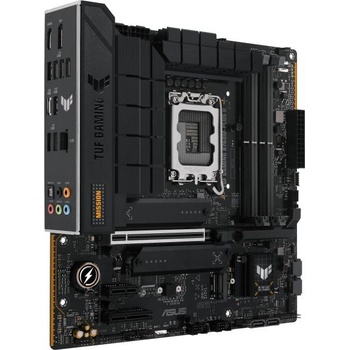

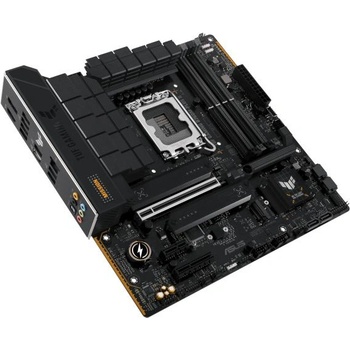

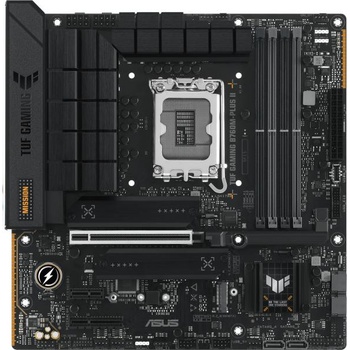

Asus TUF GAMING B760M-PLUS II
90MB1HD0-M0EAY0

CPU
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel B760 Chipset

Memory
4x DIMM slots, Max. 192GB, DDR5
7800+(OC)/7600(OC)/7400(OC)/7200(OC) /7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1x DisplayPort**
1x HDMI port***
* Graphics specifications may vary between CPU types.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots
Intel Core Processors (14th & 13th & 12th Gen)*
1x PCIe 5.0 x16 slot
Intel B760 Chipset
1x PCIe 4.0 x4 slot
1x PCIe 3.0 x1 slot

Storage
Supports 3 x M. 2 slots and 4x SATA 6Gb/s ports*
Intel Core Processors (14th & 13th & 12th Gen)
M. 2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
Intel B760 Chipset**
M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M. 2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4x SATA 6Gb/s ports****
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet
1x Realtek 2.5Gb Ethernet
TUF LANGuard

USB
Rear USB (Total 8 ports)
1x USB 20Gbps port (1x USB Type-C)
1x USB 10Gbps port (1x Type-A)
2x USB 5Gbps ports (2x Type-A)
4x USB 2.0 ports (4x Type-A)
Front USB (Total 8 ports)
1x USB 10Gbps connector (supports USB Type-C)*
1x USB 5Gbps header supports 2 additional USB 5Gbps ports
3x USB 2.0 headers support 5 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers

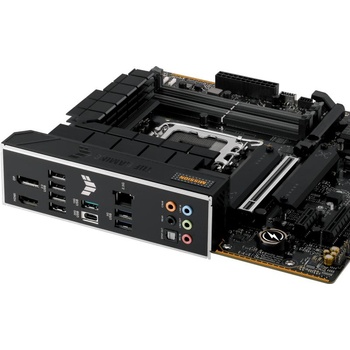

Back Panel I/O Ports
1x USB 20Gbps port (1x USB Type-C)
1x USB 10Gbps port (1x Type-A)
2x USB 5Gbps ports (2x Type-A)
4x USB 2.0 ports (4x Type-A)
1x DisplayPort
1x HDMI port
1x Realtek 2.5Gb Ethernet port
5x Audio jacks
1x Optical S/PDIF out port

Internal I/O Connectors
Fan and Cooling Related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
3x 4-pin Chassis Fan headers
Power Related
1x 24-pin Main Power connector
2x 8-pin +12V Power connectors
Storage Related
3x M. 2 slots (Key M)
4x SATA 6Gb/s ports
USB
1x USB 10Gbps connector (supports USB Type-C)
1x USB 5Gbps header supports 2 additional USB 5Gbps ports
3x USB 2.0 headers support 5 additional USB 2.0 ports
Miscellaneous
3x Addressable Gen 2 headers
1x Clear CMOS header
1x Front Panel Audio header (F-AUDIO)
1x 20-3 pin System Panel header with chassis intrusion function
1x Thunderbolt (USB4) header

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

Operating System
Windows11, Windows10 64-bit

Form Factor
micro-ATX Form Factor
24.4 cm x 24.4 cm
