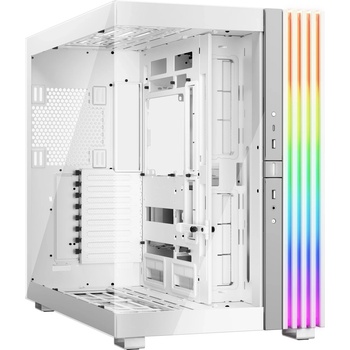

be quiet! LIGHT BASE 900 DX
BGW70
White

Motherboard compatibility: E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX
Case size excl. stands (L x W x H), (mm): 532 x 327 x 465
Case size incl. stands (L x W x H), (mm): 532 x 327 x 484
Volume (l): 68
PSU form factor: ATX PS/2
Net weight (kg): 15.3
Expansion slots: 8

Pre-installed fans
Fan at top: -
Fan at front: -
Fan at side: -
Fan at rear: -
Fan at bottom: -

Dimensions (L x W x H) (mm): -
Fan speed at 100% PWM / 12V (rpm): -
Airflow at 100% PWM / 12V (CFM / m³/h): -
Air pressure at 100% PWM / 12V (mm H₂O): -
Noise level at 100% PWM / 12V (dB(A)): -
Voltage range (V DC): -
Input power (W): -
Input current (A): -
Connector: -
Lifespan (h / 25°C): -

Fan controller: -
Maximum fan installation
Maximum fans: 10
Top (mm): 3x 140 / 3x 120
Front (mm): -
Side (mm): 3x 140 / 3x 120
Rear (mm): 1x 140 / 1x 120
Bottom (mm): 3x 140 / 3x 120
PSU shroud: -

Optional radiator installation
Top (mm): 120 / 140 / 240 / 280 / 360 / 420
Front (mm): -
Side (mm): 120 / 140 / 240 / 280 / 360
Rear (mm): 120 / 140
Bottom (mm): 120 / 140 / 240 / 280 / 360 / 420

PSU compatibility
Maximum dimensions excluding bottom fan (mm): 225
Maximum dimensions including bottom fan (mm): 225

Graphics card
HDD cage (in height of graphics card) installed (mm): 495
HDD cage (in height of graphics card) removed (mm): 495
Maximum PCIe slots with vertical graphics card (pcs. ): 4

Drive bay capacity
5.25 bays (pcs. ): -
3.5 slots (scope of delivery): 1
3.5 slots (max. ): 2
2.5 slots (scope of delivery): 4
2.5 slots (max. ): 6

Cooling
Max. construction height of CPU cooler unit (mm): 190
Airflow channel: -

Lighting
LED illumination: ✓
LEDs (pcs. ): 172
LED type: ARGB - 5V
LEDs synchronizable with controller/motherboard: ✓

I/O Panel
USB 3.2 Gen. 2 Type C: 1
USB 3.2 Type A: 2
USB 2.0: -
HD Audio I/O: Mic + Audio
Qi charger / Quick Charging Option (W): -

Insulation and damping
Top panel insulation mats: -
Front panel insulation mats: -
Side panel insulation mats: -
Anti-vibration decoupled HDD: ✓
Anti-vibration decoupled fan: ✓
Anti-vibration decoupled PSU: ✓
Anti-vibration decoupled motherboard-tray: -

Scope of delivery
Screw set (Drives/Motherboard): ✓
Additional standoffs (pcs. ): 1
SSD bracket for PSU shroud: -
LED strips (pcs. ): -
Cable ties (pcs. ): 12
Screw box: -
VGA holder: ✓
VGA holder for inverted layout: ✓
Mesh Front Panel: -
ODD Bracket: -
Fan / Radiator bracket for multi mounting panel: -

Removable dust filters
Top: 1
Front: -
Side: 1
Bottom: 1

Material:
Top cover: Steel
Front panel: Glass
Side panel: Steel
Side panel window: Glass
Stands: ABS


Продукт известен още и като Light Base 900 DX White BGW 70, LightBase900DXWhiteBGW70, Light Base 900 DX White (BGW 70)
