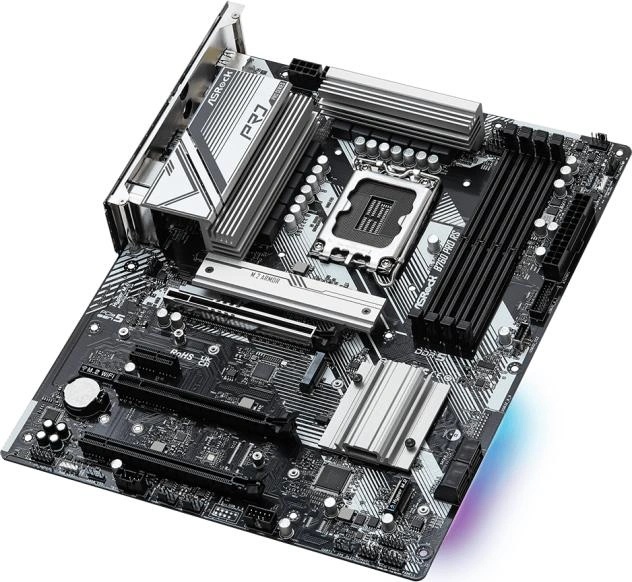

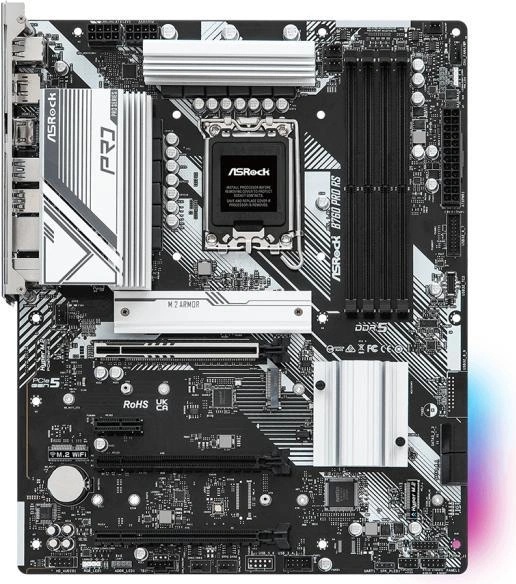

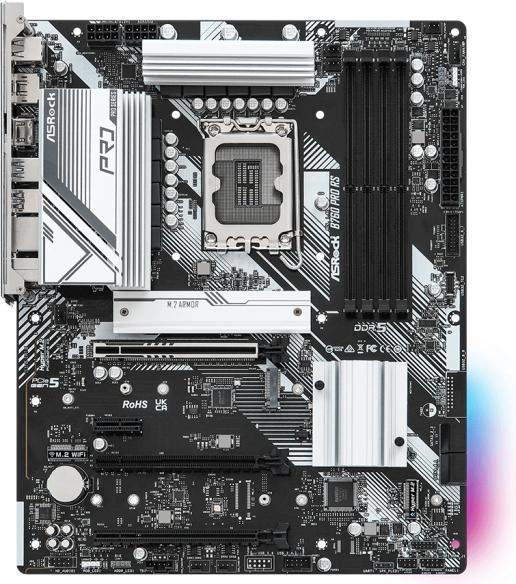

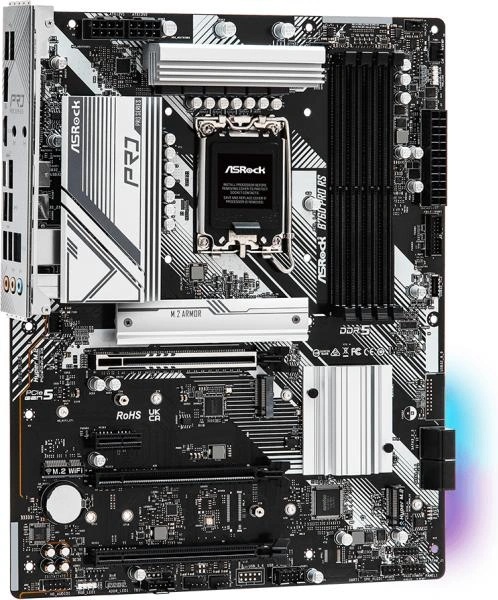

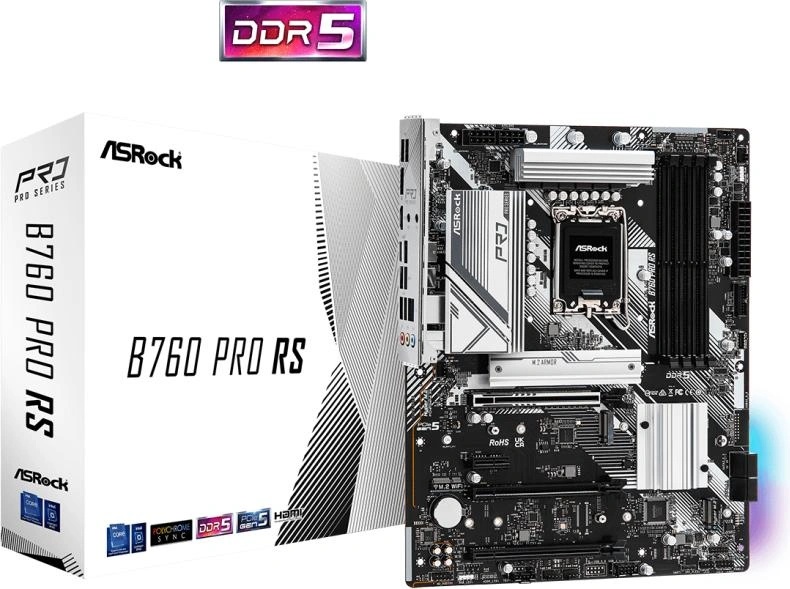

ASRock B760 PRO RS

DescriptionB760 Pro RS motherboard

• Supports 13th and 12th generation Intel Core processors (LGA1700)
• 10+1+1 Power Phase, Dr. MOS for VCore+GT
• Supports DDR5 7200MHz (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16,
• 1 PCIe 3.0 x1, 1 M. 2 Key E for WiFi
• Graphics outputs: HDMI, DisplayPort, eDP
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 2 Hyper M. 2 (PCIe Gen4x4),
• 1 M. 2 (PCIe Gen4x2)
• 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
• 1 USB 3.2 Gen2 Type-A (Rear),
• 6 USB 3.2 Gen1 (4 Rear, 2 Front),
• 4 USB 2.0 (2 Rear, 2 Front)
• Dragon 2.5G LAN
• Supports ASRock Auto Driver Installer

Model:B760 Pro RSCPU socket:LGA1700Processor family:Intel Core i9
Intel Core i7
Intel Core i3
Intel Core i5
Intel Pentium
Intel CeleronIntegrated CPU:NoChipset manufacturer:IntelChipset type:Intel B760Memory type:DDR5Number of DDR5 slots:4Memory bus frequency:7200 MHzMax memory size:128 GBExpansion slots:1 x PCIe 4.0 x 16
1 x PCIe 5.0 x 16
1 x PCIe 3.0 x 16
1 x PCIe 3.0 x 1Max. number of SATA devices:4RAID:YesDetailed data on disk/drive interfaces:CPU:

• 1 x Hyper M. 2 Socket (M2_1, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps)

chipset:

• 1 x M. 2 Socket (M2_2, Key M), supports 2260/2280 mode PCIe Gen4x2 (32Gbps)
• 1 x Hyper M. 2 Socket (M2_3, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps)
• 4 x SATA3 6.0Gb/s connector

Graphics:

• Intel Xe Graphics Architecture (12th Gen)
• eDP 1.4, supports max. resolution up to Full HD 60Hz
• HDMI 2.1 compatible with TMDS, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max resolution up to 8K 60Hz / 5K 120Hz

*Onboard Intel UHD graphics and VGA output can only be supported on processors with integrated GPUSound card:

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

Network interface:1 x 10/100/1000/2500 Mbit/sNetwork interface:

• 2.5 Gigabit LAN 10/100/1000/2500Mbps
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control

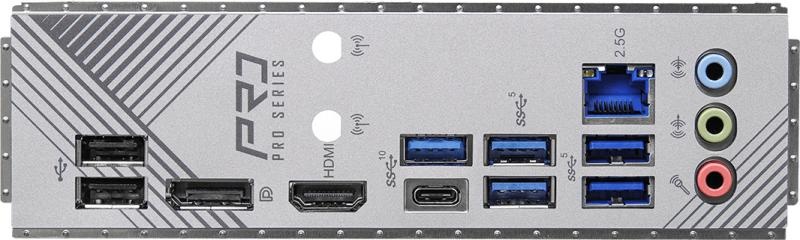

USB ports at back panel:8USB ports on motherboard:5Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports:6Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports:3FireWire (IEEE 1394):NoCOM connector / port:NoLPT connector / port:NoExternal connectors:1 x Line In
1 x Line Out
1 x MIC
1 x RJ-45
2 x USB 2.0
4 x USB 3.0
1 x USB 3.1
1 x USB 3.1 Type-C
1 x DisplayPort
1 x HDMIOnboard connectors:2 x 8pin 12V
2 x Addressable LED
1 x 4pin CPU/Water Pump Fan Connector
5 x 4pin case fan liquid cooling
1 x 4pin CPU fan
2 x RGB LED Strip
1 x Front panel audio header
4 x SATA III 6Gb/s
2 x USB 2.0/1.1 header
2 x USB 3.0 header
1 x USB C
1 x Thunderbolt header
1 x Power LED and Speaker Header
3 x M. 2
1 x TPM header
1 x 24pin ATX zasilanie
1 x eDPSpecial functions:Superb Productivity:

• PCIe Gen5 (Graphics)
• Dual Channel DDR5

Rock Solid Durability:

• 10+1+1 Power Phase, 50A Dr. MOS for VCore+GT
• Pre-Installed I/O Shield

Ultrafast Connectivity

• 2.5G LAN

EZ Update

• ASRock Auto Driver Installer

EZ Troubleshooter

• ASRock Post Status Checker

BIOS:128MB AMI UEFI Legal BIOS with GUI supportForm factor:ATXDimensions:30.5 x 24.4 cmAccessories included:

• User manual
• 2 x SATA data cable
• 4 x Screws for M. 2 slots
• Spacer for M. 2 slot

Supported operating systems:Windows 10
Windows 11Software:Software:

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC

UEFI:

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• ASRock Easy RAID Installer
