ASUS TUF GAMING B650-PLUS

Описание на продукта във PDF формат
Доставка на този тип поръчки:
Продукта се поръчва специално за клиента, след извършено от него плащане по банка, с карта или в брой в магазина.
Срока за доставка е 2-5 дни след получено плащане на поръчката.

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3

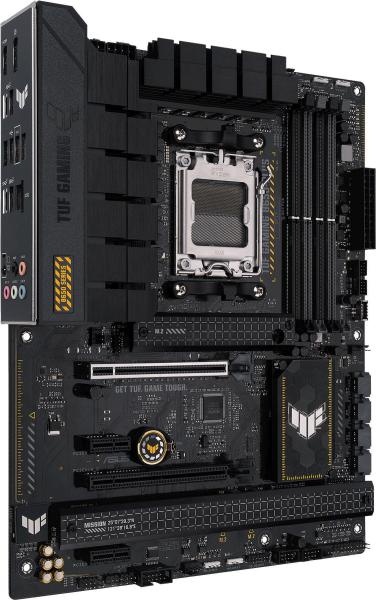

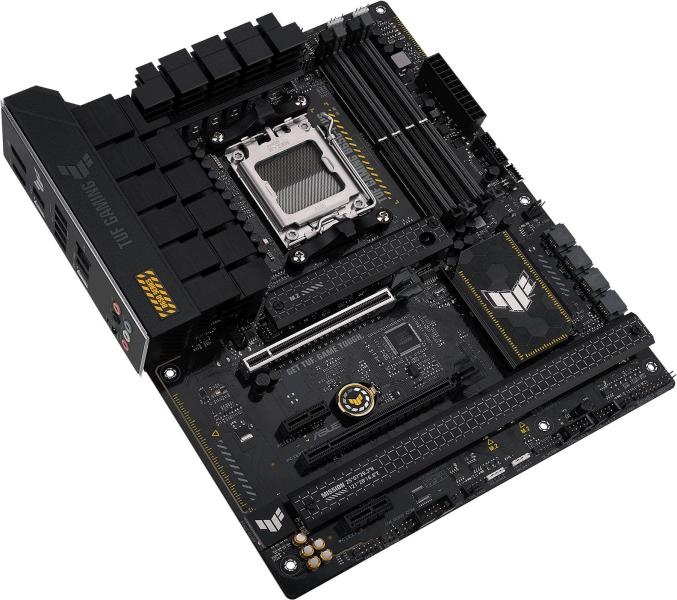

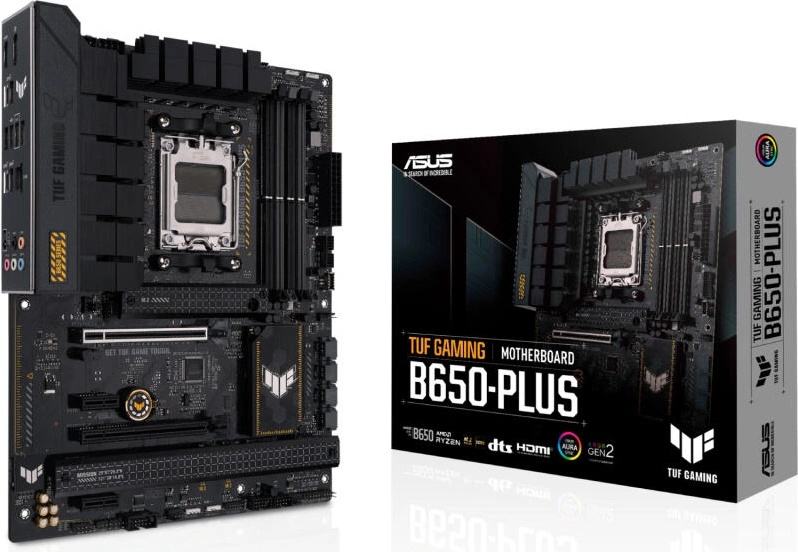

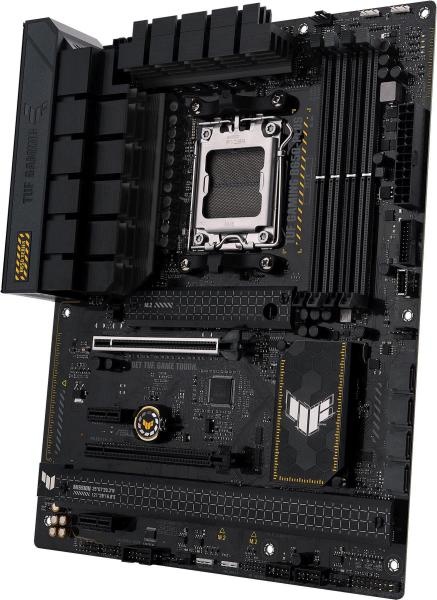

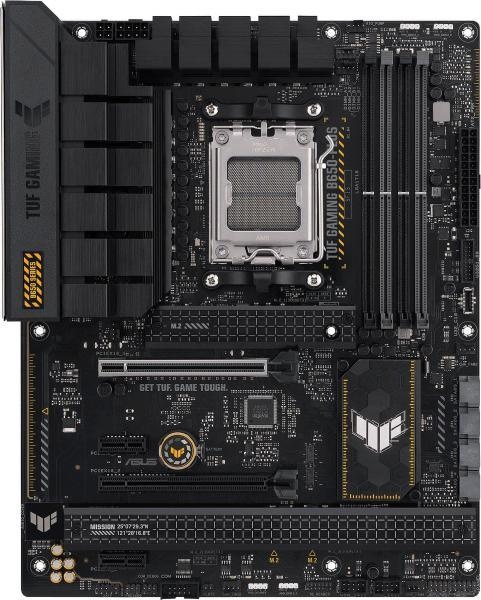

ASUS TUF GAMING B650-PLUS

Graphics: 1 x DisplayPort*; 1 x HDMI® port**
CPU's supported: AMD Socket AM5 for AMD Ryzen 7000 Series
Chipset: AMD B650
Expansion Slots: AMD Ryzen 7000 Series Desktop Processors*; 1 x PCIe 4.0/3.0 x16 slot(s); AMD B650 Chipset; 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode); 2 x PCIe 4.0/3.0 x1 slots
Storage: Total supports 3 x M. 2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen 7000 Series Desktop Processors; M. 2_1 slot (Key M), type; 2242/2260/2280(supports PCIe 5.0 x4 mode); M. 2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); AMD B650 Chipset; M. 2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**; 4 x SATA 6Gb/s ports
Memory type: 4 x DIMM, Max. 128GB, DDR5; 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO); OptiMem II

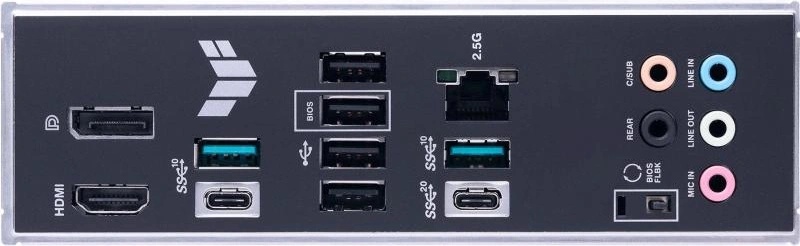

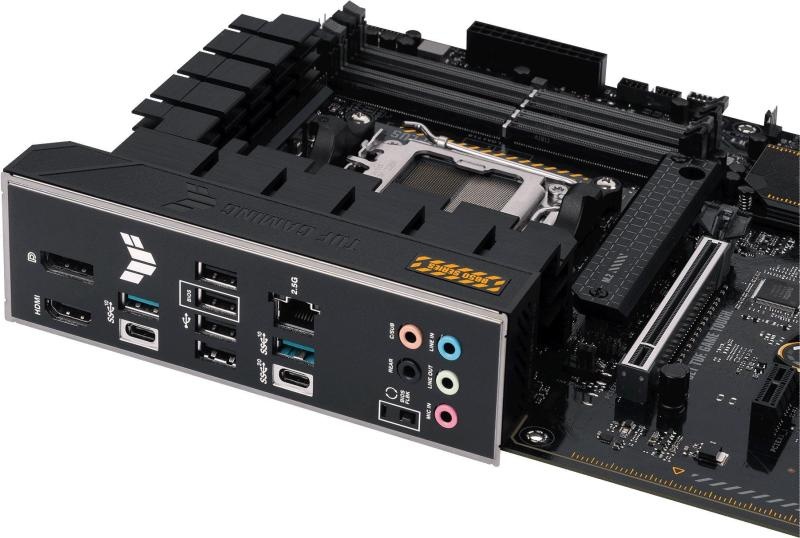

I/O: 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®); 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®); 4 x USB 2.0 port(s) (4 x Type-A); 1 x DisplayPort; 1 x HDMI® port; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x BIOS FlashBack button
Connectors: 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 1 x 4-pin AIO Pump header(s); 4 x 4-pin Chassis Fan header(s); 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 3 x M. 2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® ); 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports; 3 x Addressable Gen 2 header(s); 1 x Aura RGB header(s); 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt (USB4®) header
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Power pre-regulator reduces power input noise to ensure consistent performance; - Premium audio capacitors; - Dedicated audio PCB layers; - Audio cover; - Unique de-pop circuit
LAN: 1 x Realtek 2.5Gb Ethernet; TUF LANGuard
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor: ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
OS: Windows® 11; Windows® 10 64-bit
Warranty: 36 Months



.
MAIN BOARD
Mainboard
